Hot Sales 30 Ton Electric Wire Rope Boat Trailer Slipway Winch

Product Description

Hot Sales 30 Ton Electric Wire Rope Boat Trailer Slipway Winch

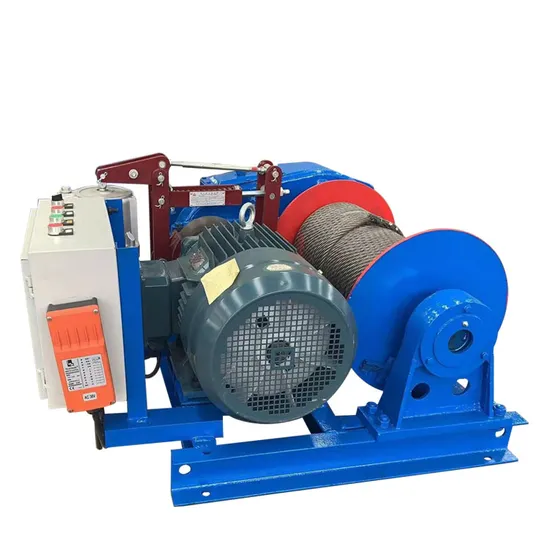

JK/JM series electric winch is is made up of motor,brake,drum,wire rope,electrical appliance,base ect ;This structural characteristic is wire rope orderly arrangement lifting is safe and reliable. Electric winch is mainly used for Vertical lifting,Horizontal pulling, Mooring, Anchoring, slipway, mine,Hydro power station,etc.It is suitable for various bridges, ports, docks,ships and other projects and large-scale plant and equipment installation projects.

Main Features:
> Local / remote control methods;
> Bevel/ Spur gear gearbox;
> Speed: single/double speed, Variable speed by VFD on optional;
> Customized electrical cabinet: PLC, Explosion Proof, Wireless communication,etc;
> Accessories: Load cell, Limit switch, encoder,real-time display, safety brake, etc;
> Rope Guider on optional;
> Flat drum or Grooved drum;
Main Technical Parameter
JK Type Electric WinchLoad Capacity: 0.5-60t Wire Rope Capacity: 20-500m
Working Speed: 20-35m/min(Single Speed and Daul Speed)
Power supply: 220v-690V,50Hz/60Hz,3Phase

JK Electric winch
Basic Parameters	Rated Load	Rope Speed	Capacity of Rope	Rope Diameter	Motor Power	Dimension	Total Weight
Model	KN	m/min	m	mm	KW	mm	kg
JK0.5	5	22	190	7.7	3	620×701×417	200
JK1	10	22	100	9.3	4	620×701×417	300
JK1.6	16	24	150	12.5	5.5	945×996×570	500
JK2	20	24	150	13	7.5	945×996×570	550
JK3.2	32	25	290	15.5	15	1325×1335×840	1011
JK3.2B	32	30	250	15.5	22	1900×1738×985	1500
JK5	50	30	300	21.5	30	1900×1620×985	2050
JK5B	50	25	210	21.5	22	2250×2500×1300	2264
JK8	80	25	160	26	45	1533×1985×1045	3000
JK10	100	30	300	30	55	2250×2500×1300	5100
We can design and manufacture all kinds of non-standard product according to your requirement

JM Type Electric Winch
Load Capacity: 0.5-200t Wire Rope Capacity: 20-3600m
Working Speed: 5-20m/min(Single Speed and Daul Speed)
Power supply: 220v-690V,50Hz/60Hz,3Phase

JM Electric winch
Basic Parameters	Rated Load	Average Speed of Rope	Capacity of Rope	Rope Diameter	Motor Power	Overall Dimension	Total Weight
Model	KN	m/min	m	mm	KW	mm	kg
JM1	10	15	100	9.3	3	620×701×417	270
JM1.6	16	16	150	12.5	5.5	945×996×570	500
JM2	20	16	150	13	7.5	945×996×570	550
JM3.2	32	9.5	150	15.5	7.5	1430×1160×910	1100
JM3.2B	32	12	195	15.5	7.5	1082×1014×610	536
JM5	50	10	270	21.5	11	1235×1230×805	1560
JM5B	50	9.5	200	21.5	11	1620×1260×945	1800
JM5C	50	9.5	350	21.5	11	1235×1230×805	1800
JM5D	50	15	350	21.5	15	1235×1230×805	1850
JM5E	50	20	350	21.5	22	1235×1230×805	2000
JM20	200	10	600	43	45	3950*2560*1950	9900
JM25	250	9	700	48	55	4350*2800*2030	13500
JM32	320	9	700	56	75	4500*2850*2100	14800
JM50	500	9	800	65	90	4930*3050*2250	19500
JM65	650	10.5	3600	64	160	5900*4680*3200	46000
We can design and manufacture all kinds of non-standard product according to your requirement

JMM Type Electric WinchLoad Capacity: 1-100t Wire Rope
Capacity: 20-5000m
Working Speed: 5-20m/min
Power Supply: 220v-690V,50Hz/60Hz,3Phase
Successful Project
The following winch pictures are from customer feedback (Bangladesh, Nepal, Uzbekistan, Russia, Kazakhstan, Sri Lanka, Kenya, Mexico, South Africa, Philippines, Malaysia, Colombia, etc.), we also have a lot of customer feedback videos, if you are interested, please contact us to send to you.
Rave Reviews
Company Profile
Nybon Machinery is a leader in providing bridge cranes, gantry crane, port crane, ship cranes, electric winches, hydraulic winches, diesel winches, electric hoist and relative components for shipyard,automotive, material handling, specialty machinery, and workshop solutions. Our diverse portfolio also includes a wide range of lifting products for industrial, commercial and specialty applications.Our company also welcome O E M and ODM orders.NYBON, JUST FOR YOUR TRUST!
Machining Equipment
We have laser cutting machine, CNC plasma cutting system, box beam forming production line, automatic submerged arc welding system, CNC boring and miling machine, etc. For winches & electric hoists,we have test platform to test each products before delivery to make sure the quality and performance; Under our strictly mangement regulation, our products certificated by EAC, CE, ISO, CCS, BV, RMRS and many other certifcates;
Certifications
Packaging & Shipping
FAQ
Q.Can i have a price?
After getting your parameters,we will offer you a accurate price.
Q.Can I customize products?
Yes,we can offer OEM and ODM services
Q.What's your delivery period?
Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q.Do you have engineer oversea installation service?
Yes; We have;
Q.Do you offer after-sales service?
We have after-sales team to support you.
Q.How long will it take to ship to my country?
For international shipping, it depends on the product quantity and delivery address.For a specific estimate, please provide these details so that I can quote the most cost-effective option.
Dear friends, in order to offer you the suitable winches, please provide the following parameters:
1. What place Do you use it?
2. Use for lifting or dragging?
3. Is explosive-proof needed?
4. Load and Rope capacity?
5. Power voltage ?

---
