China High Quality CNC Lathe Machine Ck210 Mini Hobby DIY CNC Lathe Machine

Product Description

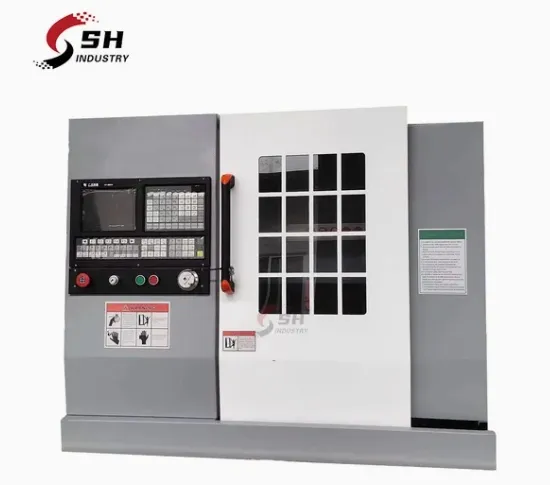

China High Quality CNC Lathe machine CK210 Mini Hobby DIY CNC Lathe Machine

Product Description
Main features:
Fully enclosed and transparent organic glass structure, cast iron material, high-precision grinding ball screw;
Equipped with industrial panel numerical control system;
Main processing materials: steel, iron, copper, aluminum alloy, PVC plastic, organic glass, etc
Standard accessories:
Cooling system, electronic handwheel, three jaw chuck key, solid head wrench, hexagonal socket wrench, oil pot, double head wrench, chuck counter jaw, CNC system programming manual, CNC system operation manual
SPECIFICATIONS

SPECIFICATIONS	Units	CK210
Swing over bed	mm	210
Max.clamping workpiece diameter	mm	1-80m
Spindle bore	mm	28
Spindle speed	rpm	100-2000
Spindle taper	-	MT3/MT2
Tool post	-	4 station tool post
Tool post angle/accuracy		360°/0.005mm
Coolant system		Coolant water
X axis travel	mm	80
Z axis travel	mm	290
Electronic handwheel		4/3 electronic handwheel
CNC system		Guangzhou Keyuan
Output power	w	1100
N.W./G.W.	kg	180/200
Machine size	mm	1000x700x580
Packing size	mm	1100x800x700

Detailed Photos

Company Profile
Certifications


FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
