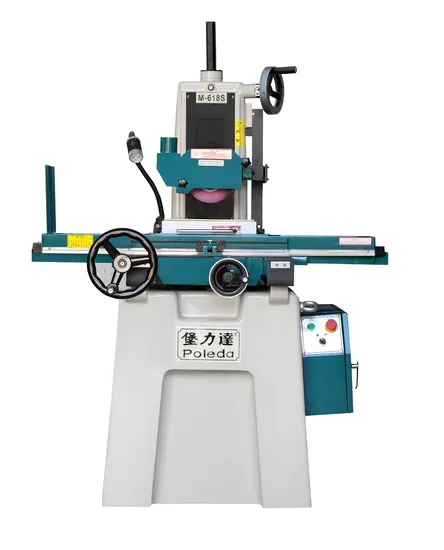

618h Precision Grinding Machine Universal Surface Grinding Machine Saddle Moving Surface Grinding Machine

Product Description

Mechanical prof perties
Machine structure: The main castings of the machine are made of high-grade cast iron, and through annealing treatment, to eliminate internal stress, to ensure high precision, high rigidity, and extend the life of the machine. Slide way: The machine left and right and front double V slide way adhesive wear-resistant resin TI URCITE-B, and precision shovel flower, not only smooth sliding and wear-resistant, the most suitable for forming and grinding.
Cylindrical straight spindle: The machine adopts P4 ultra-precision angular roller bearing, low noise, no vibration, large torque under high-speed rotation, suitable for heavy cutting and all kinds of forming grinding.
Automatic lubrication system: the use of circulating automatic lubrication system. When the main spindle starts, the lubricating oil automatically circulates immediately to provide forced lubrication for each screw and slide, which can greatly reduce the wear degree of slide. An oil mirror is installed above the column to monitor the lubrication condition.

Product Name
Product Name		Grinding machine
Product model		618
Product technical parameters
	1 Table size		150*450MM(6*18'')
	2 Maximum grinding length		475MM(18-3/4'')
	3 Maximum grinding width		160MM(6-1/3'')
	4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
	5 Standard disk size		150*350MM
	6 Left and right feed/manual stroke		485MM(19'')
	7 Front and rear feed/manual stroke		160MM(7'')
	8 Hand wheel feed (per turn)		5MM(0.2'')
	9 Hand wheel feed		0.02MM(0.001'')
	10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
	11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
	12 Spindle speed (50/60HZ)		2800RPM
	13 Spindle motor		1.5HP
	14 Weight (approximate)		800kgs
	15Machine size (L * W * H)		1350*1050*1850MM
	Grinding machine configuration	Accessories name and specification		quantity
	Standard parts for machine tools	1,Grinding wheel and flange		1
		2,Wheel removal wrench		1
		3,Hexagonal wrench		1
		4,Leveling screws and foot pads		1
		5,Grinder guide oil		1
		6,Toolbox and adjustment tools		1
		7,Hanging rings		1
		8,Grinding wheel		1
	Special parts for machine tools	9,Grating electronic ruler		1
		10,Detail disk		1

---
