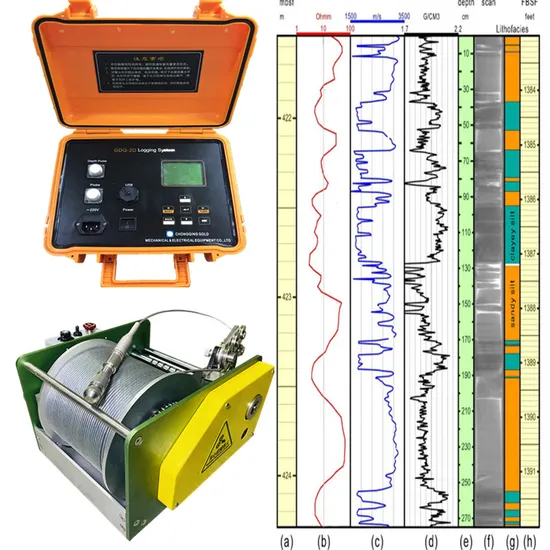

Sp Resistivity and Gamma Ray Well Logging Equipment Borehole Logging Equipment Water Well Logging and Geophysical Logging Equipment Well Log for Selling

Product Description

Sp Resistivity and Gamma Ray Well Logging Equipment Borehole Logging Equipment Water Well Logging and Geophysical Logging Equipment Well log for Selling


Instruction:
Sp Resistivity and Gamma Ray Well Logging Equipment Borehole Logging Equipment Water Well Logging and Geophysical Logging Equipment Well log for Selling
Well logging, also known as wireline logging, is a method of data collection in the borehole environment which enables the determination of subsurface physical properties and reservoir parameters. Measurements are collected versus depth along a well and there are many different types of wireline tools depending on the physical property of interest. In general, well logs respond to variations in rock matrix and pore fluid composition.
Well logs are acknowledged as legal documents which record the history of a well through the drilling stages and up to its completion. The well logs record physical properties of the borehole which must then be petrophysically interpreted to obtain the associated rock and fluid properties of the well.
Use:
Sp Resistivity and Gamma Ray Well Logging Equipment Borehole Logging Equipment Water Well Logging and Geophysical Logging Equipment Well log for Selling
Well logging is used for electrical imaging, mine mapping, and hydrocarbon and hydrological exploration to obtain in situ properties of possible reservoir rocks. Electric logs are considered useful for evaluating formation fluid properties. Modern well-logging techniques are used to locate deep-seated metallic ore deposits, extension of orebodies in all directions, freshwater resources, and as part of engineering test drilling. The cross-hole and up-hole tomographyinvolves sending seismic, electrical, electromagnetic, and radar signals between a transmitter in one borehole and a receiver in another borehole.
Features
Sp Resistivity and Gamma Ray Well Logging Equipment Borehole Logging Equipment Water Well Logging and Geophysical Logging Equipment Well log for Selling
1.Extension notebook computer.
2.Logging can be made upward and downward
3.Digital and analogue signals can be received.
4.Auto-sampling according to the depth interval.
Sp Resistivity and Gamma Ray Well Logging Equipment Borehole Logging Tool Water Well Logging and geophysical logging equipment for Selling
Specifications
Sp Resistivity and Gamma Ray Well Logging Equipment Borehole Logging Equipment Water Well Logging and Geophysical Logging Equipment Well log for Selling
1.12-bit A/D converter, enlargement factor k= 0.5~128
2.Counting channel frequency: f ≤500KHz.
3.Digital signals transfer frequency 9600bit/s
4.Analogue signals input: ≤±10V
5.Supply current: 2mA to 500mA (optional)
6.Logging speed: 0 to 30 meter/min.
7.Power consumption: Less than 200W
8.Power supply: AC220V±10% 50Hz±5%
9.Operation temperature: -10°C to +50°C

10.Dimensions: 420×260×2
Logging System Software
1.Operation system: windows98/2000/XP
2.Sampling interval: 1cm to 1000cm
3.Max depth of sampling once: 3000m (0.1m sampling interval)
4.Multi-parameter auto-aligns depths.
5.Curves of multi-parameters: up to 10.
6.Curve drift, anomaly deletion, smooth, inverse order, combination, segmentation, computation and so on.
7.Interpreting sections input and rock-formation name, thickness, bottom block depth will be formed automatically.
8.Curve scaled (zoom in or out).
9.Curve depth scales: 1:50,1:100, 1:200, 1:500 and 1:1000
10.Colored or Grey plot maps.
11.Max Map output: width 415mm, length 2310mm.
Sp Resistivity and Gamma Ray Well Logging Equipment Borehole Logging Tool Water Well Logging and geophysical logging equipment for Selling

No.	Probe name
1	M552 Combined sidewall probe
2	M451 Combined density probe
3	S524-1S Acoustic wave probe
4	CZ521- Combined Natural Gamma probe
5	W422Temperature and liquid resistivity combined probe
6	CX3019 SP, inclination, natural gamma combined probe
7	ZH-1 Natural gamma, inclination, temperature, acoustic wave combined probe
8	ZH-2 Natural gamma, inclination, Three direction laterolog, Temperature and liquid resistivity combined probe
9	JSC-1 Digital inclination probe
10	S524 Acoustic wave probe
11	H411 Magnetic susceptibility probe
12	X411 Three-lateral direction resistivity laterolog probe
13	J411 Caliper probe
14	LLY-1Flow probe
15	R411 Natural gamma probe
16	JD-1Conventional resistivity log probe
17	JDS-1 Brush electrode probe
18	JD-3 Soft-elctrode probe

Automatic Winch
Sp Resistivity and Gamma Ray Well Logging Equipment Borehole Logging Equipment Water Well Logging and Geophysical Logging Equipment Well log for Selling
