1/2" RF Feeder Cable / Corrugated Cable with N / Din Plug for DAS

Product Description

1/2" RF Feeder Cable / Corrugated Cable/ Andrew Heliax Cable

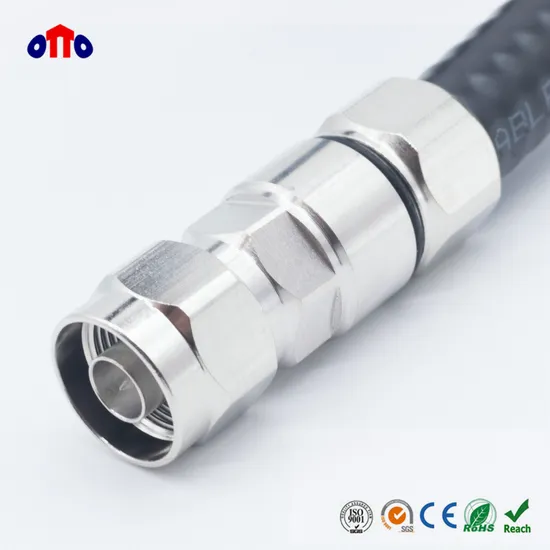

1/2" RF feeder cable, 50Ohm, also named half-inch coaxial cable, has pretty good performances, wish loss, great attenuation, and PIM. Its assemblies are usually fixed with N-type connectors.
This 1/2" RF feeder cable and its assemblies are largely used on antennas, cellphone/mobile phone signal boosters, and repeaters. It's also suitable for GSM, CDMA, TD-SCDMA, CDMA2000, WCDMA, etc.

RF Feeder Cable 1/2"
Construction
Item	Material		Diameter(mm)
Inner Conductor	Copper Clad Aluminum		4.8
Dielectric	Foam PE		12.0
Shield	Corrguated Copper Tube/ Aluminum Tube		13.9
Jacket	PVC		15.7
Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@150MHz	2.7
Velocity of Propagation(%)	88	@200MHz	3.1
Return Loss(dB)	≥20	@300MHz	3.83
Capacitance	76	@450MHz	4.75
Shielding Effectiveness(dB)	≥90	@800MHz	6.46
Operating Temperature(ºC)	-30 to +70	@1000MHz	7.28

---
