High Precision Industrial Cutting CNC Lathe Machine Customization Tck50

Product Description

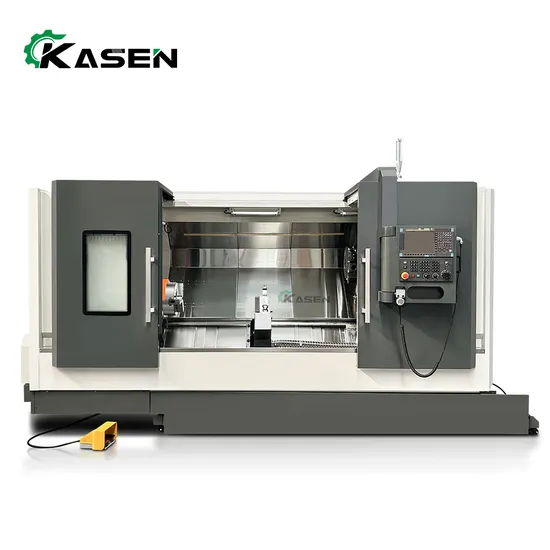

High Precision Industrial Cutting CNC Lathe Machine Customization TCK50
Product Description
Features:
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.One-piece bed adopts high strength iron to ensure rigidity and precision Slant bed design and linear guideways enqure process speed and accuracy Carriage and guide-way contact surface use Turcite B to maintain accuracy.

Product Parameters

parts	project	TCK50
Processing range	Maximum rotation diameter on the bed (mm)	Φ550
	Maximum cutting diameter (mm)	Φ440
	Maximum cutting length (mm)	450
Itinerary and Feed	X-axis travel (mm)	280
	Z-axis travel (mm)	525
	X-axis movement speed (mm/min)	24000
	Z-axis movement speed (mm/min)	24000
	Hand wheel (mm)	0.001/0.01/0.1
	X, Z feed speed (mm/min)	0~5000
	X, Z manual feed speed (mm/min)	0~1260
Position accuracy	X-axis repeat positioning accuracy (mm)	0.005
	X-axis positioning accuracy (mm)	0.01
	Z-axis repeat positioning accuracy (mm)	0.006
	Z-axis positioning accuracy (mm)	0.015
Spindle	Spindle speed (rpm)	35-3000
	Spindle maximum torque (N.m)	48
	Spindle nose	A2-6
	Spindle through hole diameter (mm)	Φ66
	Hollow hydraulic chuck through hole diameter (mm)	Φ50
	chuck	10"(Optional 12")
Dota	Number of tool holders	12 workstations
	Tool changing time (s)	0.25
	Tool installation size (mm)	25×25
	Boring tool holder installation diameter (mm)	Φ32
Tailstock	Tailstock travel (mm)	480
	tip taper	MT-5#
Main motor	Main motor power (kw)	7.5 (4500rpm)
	Main motor torque (N.m)	48
X, Z axis Feed motor	X-axis feed motor power (kw)	2.3
	X-axis feed motor torque (N.m)	15
	Z-axis feed motor power (kw)	2.3
	Z-axis feed motor torque (N.m)	15
cooling system	Coolant capacity (L)	200
	Motor type (1HP) (kw)	0.18
size	Installation (length*width*height) (mm)	2697/1795/1860
weight	Mechanical weight (kg)	3600

Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
