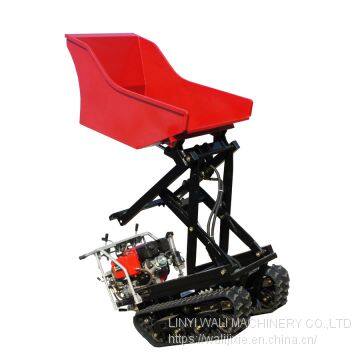

Mini crawler type garden truck dumper with lift container

Product Details

Product Description

Product Description
mini crawler type truck dumper with lift container Features
1.Maximum loading weight is 800kgs.
2.The main parts have high quality with global warranty.
3.Easy and comfortable operation due to the intuitive controls.
4.Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.
5.Easy climbing and stable crossing the obstacles.

Model	WL-350H
Engine	Kaijian diesel engine 192FB/13HP
Track grounding length	800 mm
Track gauge	500 mm
Track width	180 mm
Start type	Electric
Loading weight	350 KG
Gear box	(3+1) * 2 configuration high low
Drive speed	F 1.8-6.1/R1.8-3.6 km/h
Container size	1400x750x700 mm
Package size	2060x850x1430 mm
Overall size	1960x750x1280 mm
Net weight	532 KG
Ground distance	140 mm
Slope angle	20 degree
Lift height	600 mm
Control type	Hydraulic hand hold
Lift container /dumper	Hydraulic cylinder

---
