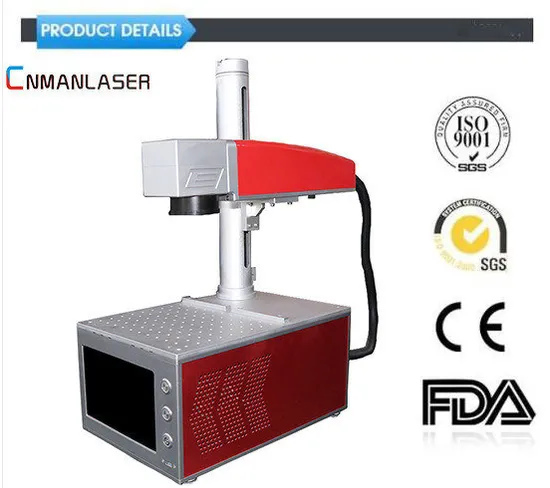

Ring Jewelry Copper Metal 50W Laser Marking Machine with Rotary Device

Product Description

Ring Jewelry Copper Metal 50W Laser Marking Machine with Rotary Device
(Model:Man-50)
Product features:
1) Under operation system: windowns xp , windowns 7 ,windows8/10
2) Support Characters , digital, series NO, Date codes
3) Various types of fonts are supported. Such as TrueType, JSF(Single line font ), DMF(Dot Matrix Font,One-Dimensional bar code, Two-Dimensional bar code , and so on
4) Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)
5) Common vector images are supported. (ai, dxf, dst, plt…)
6) Flexible variable text : changes the text real time while in laser processing . Excel datasheet is supported.
7) Imported fiber laser system
8) Excellent optical mode, long operating life, up to 100,000HS
Low Cost In Use >> No wearing part free of maintenance.
High Speed >> Imported laser scanning system makes the marking speed up to 7000mm/s .
High Precision>> High precision , re-position precision is 0.002mm.
Energy Saving>>The efficiency of optic electrical converting is up to 70%.
High Reliability>> MTBF ( mean time between failures ) >100 , 000 hours.
Integrated and Compact >> Small size only 0.5 M2, can be put on desk and easy to install .
Easy Operating>> easy operation ,VCD training , trouble free
10 Years Long Lifetime >> Fiber laser device adopts Germany IPG technology , 100000 hours lifetime .
No consumables>> while machine can be used free of maintenance for 8 -10 years.
Air cooling>> Adopts air cooling , has excellent cooling effect than the other cooling method.

Model	MAN-F10/20/30/50
Laser power	10W/20W/30W/50W
Laser Wavelength	1064±10nm
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking range	110*110mm/150*150mm/200*200mm/300*300mm
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	7000mm/s
Marking depth	0 ~1mm
Engraving line speed	≤7000mm/s
Repeatability accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking Format	Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number,frequency,etc.
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
working voltage	220V±10%/50Hz/4A
Unit power	0.5kw
Working environment	Clean and dust free or dust less
Working (Humidity)	5%-75%,free of condensed water
Laser module life	100000 hours
Net weight	35kg
Warranty	36 months

Applied material:
1. Stainless steel, aluminum, copper, iron, aluminum alloy and other alloy and metal surface;
2. Plastic such as PP ,PE,PS,PF,ABS ,PVC material, resin and rubber;
3. Other kinds of processed surface such as paint, spray paint, oxidized and electrophoresis;
4. Stone, acrylic and paper with colors;
1) Free Training by VCD:We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting.(Recommend)
2) Free Training Factory:You can send operator to laser marker factory for free training. Laser marker will offer professional guide for free.It is direct and effective face-to-face training.Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time:2-3 days (Recommend)
3) Our engineer can do a door-to-door instruction training service at your local site.We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.It's better to arrange a translator for both of our engineers during the training period.
Quality Guarantee and After-sales Services
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period.While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts.After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.
2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.
3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;

---
