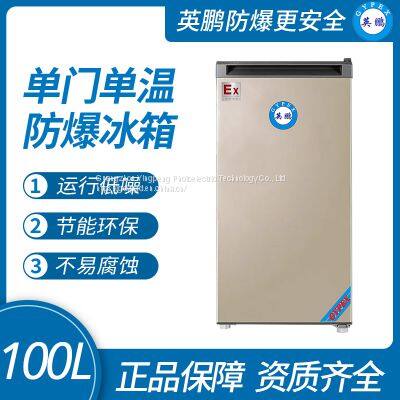

Product Details
Product Description
Product Description
Brand: Yingpeng
Model: BL-200DM100L
Style: Single door, single temperature
Rated voltage/frequency: 220V/50HZ
Effective volume (including mechanical room): 100L
Freezing temperature: -14~-24 ℃
Control method: mechanical
Size (depth * width * height mm): 495 * 550 * 990
Explosion proof grade: ExdibmbIICT4Gb
brand
Yingpeng
model
BL-200DM50L
BL-200DM90L
BL-200DM100L
BL-200DM150L
BL-200DM200L
style
Single door and single temperature
Rated voltage/frequency
220V/50HZ
Effective volume (including mechanical room)
fifty
ninety
one hundred
one hundred and fifty
two hundred
Reefer-Temperature required
2-8℃
2-8℃
-
-
-
Freezing temperature
-
-
-14~-24℃
-18~0℃
-18~0℃
Refrigeration method
Direct cooling
control mode
Mechanics
Noise value
thirty-seven
thirty-eight
Dimensions (depth * width * height)
466*500*540
535*480*856
495*550*990
550*635*1090
550*635*1340
Explosion proof level
ExdibmbIICT4Gb
It can be widely used in hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4 in petroleum, chemical, pharmaceutical, aerospace, laboratory, storage and other departments. The BL series industrial grade integrated explosion-proof refrigerator is a Class IIC explosion-proof refrigeration system manufactured using integrated explosion-proof technology according to industrial environmental requirements.
Structural form of explosion-proof refrigerator.
The explosion-proof single door refrigerator only has one door and no dedicated freezer. The freezer box is directly composed of an evaporator and adopts a box structure with a small door installed on the upper part of the inner liner. The temperature inside is generally -12~-6 ℃, which can be used for ice making and freezing chemicals. Below the evaporator is a refrigeration room, without any insulation facilities in the middle. The cold storage room is cooled by natural convection of air, and the temperature is generally controlled at 0-10 ℃. There are temperature sensors, shelves, and temperature controllers installed in the explosion-proof chamber outside.
The explosion-proof refrigerator adopts internationally leading ultra-weak current technology to isolate intrinsically safe circuits, and has undergone special manufacturing and explosion-proof treatment. The design and manufacturing of the product strictly follow the relevant national standards:
GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"
GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "
GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "
GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "
GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "
The product surface adopts maximum surface temperature limit protection technology and comprehensive anti-static technology, as well as various safety protection technologies;
Voltage: 220V/50Hz, 220V/60Hz, 110V/50Hz;
Explosion proof sign: ExdibmbIICT4Gb
>>
