Rapier Looms for Weaving Natural Fibers (cotton, linen, wool)

Product Description

Product display and advantages
Main Feature :
•Production status and schedule are monitored in realtime, which makes pproduction schedule planning more reasonable
energy
•Performance appraisal will be improved as workers' performance can bequantized and assessed, which makes evaluation
casicr and fairer.
•Technology management becomes easy as technical requirement for hunman is simple
•Labor reduced: yarn breaking events will be detected and located by thesystem, which saves a lot of physical work
•Empty spindle rate reduced: yarn breaking events will be detected and ndice by field alarm and monitoring system in real
time which keeps the spindles from outage.

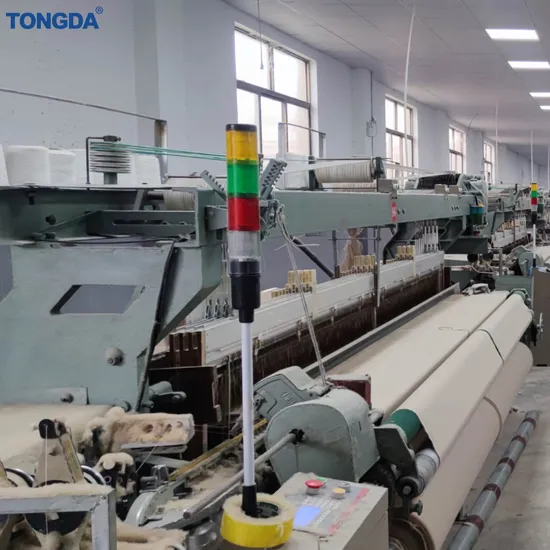

Flax/linen & Cotton/ Viscose Fabric
Rapier Loom
· This machine for weaving natural fibres (cotton, wool,linen/jute), synthetic fiber plastic wire rope and other kinds of fiber,etc.
Product Details
For looms: real-time monitoring all the process data, including rotatinpeed, weft density,electronic yarn tension, completed fabric length, pointer position of heald frame, pointer position of color king, counts of weft breaking and warp breaking current pattern name, current pattern length, and etc.
Topology Map
Main technical parameters

Configuration	Main Specifications
Nominal reed width : Speed:	1500MM-8500MM max.weft insertion 250 picks/min, max.weft insertion rate 750m/min
Weft yam count range	Cotton-5Ne-80Ne Jute-8Nm-130Nm Man-made fibers-1200dtex-75tex
Weft selection:	Mechanical or Electronic selection
Dia.beam flange:	600MM Ф800MM
Dia, roller:	Ф600-Ф1500MM
Shedding device:	Upper mechanical dobby, or electronic dobby
Heald frame:	4-20 pcs
Warp stop:	Electronic induction control
Weft stop:	6 Row electrical
Electrical control:	Electronic control system
Motor power:	1.5KW~2.2KW
Main motor	Centralized oil

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
