Product Description
Product Description

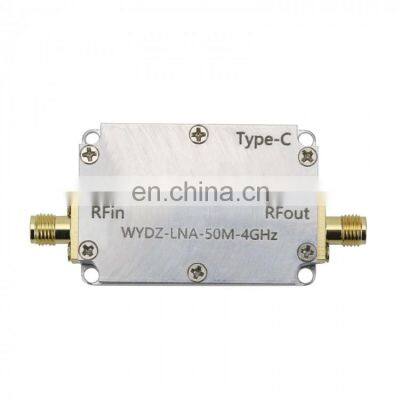

0.05-4GHz Noise Figure 0.6DB RF Amplifier Low Noise Amplifier LNA Amplifier For GPS Beidou Receivers Product Description Application Scenario:Full aluminum alloy shield, measured S parameter and noise figure NF with noise analyzer1. For Beidou/GPS receiver2. Receiver system (FM radio receiving, radar receiving, etc.)3. Electromagnetic compatibility receiving system4. Software radio receiverCore Chip Manual:Index Parameters:1. Power supply: TYPE-C cable2. Module frequency range: 50M-4GHz (0.05-4GHz)3. Noise figure: NF=0.6dB (refer to the measured curve for different frequencies)4. Gain: 18DB (refer to the measured curve for different frequencies)5. Volume: 4.5*3*1.4cm (excluding sizes of protruding SMA); Product weight: 66g (including host + TYPE-C cable)6. Current: <100mA7. P1dB=22.7dBm at 1.96GHz8. Output interface: SMA female, input and output impedance: 50 ohmsPackage Included:- 1 x RF Amplifier w/ Aluminum Alloy Shell- 1 x Type-C Cable Detail photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link. Q5. After paid, what info of the supplier provided? A: Tracking number Q6: Do you offer guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.4. By Sea: Delivery from the Shenzhen sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
