Product Details
Product Description
Product Description

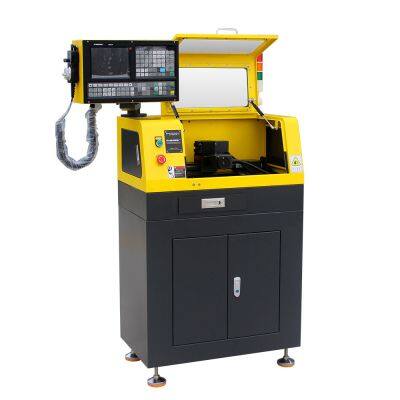

CK140 Mini CNC Lathe,With additional course content, how-to projects, and a robust support team, the YORNEW Tools Desktop CNC Machine is a great STEAM tool to skill up on CNC machining. It’s an excellent addition to any shop, lab, classroom, studio, or makerspace.
High performance 2 axis Lathe CNC controller.
Automatic 4 positions tool post.
Selection of high -quality casting materials,more compact,High strength guide way.
Auto power off when door open
High quality 2 axis step motor,high torque brushless motor.
Control speed of G code.
Best choice for DIY or Hobby user and Education & Training CNC.
Technical parameters
| Turning diameter over bed(max) | 140mm |
| Travel across slide | 75mm |
| Chuck diameter | 80mm |
| Spindle speed | 100-2000r/min(control speed of G code) |
| Spindle through-hole | 11mm |
| Spindle mount | MT2 |
| Spindle motor power | 150W |
| X travel | 70mm |
| Z travel | 160mm |
| The max moving speed | 2000mm/min |
| The max feeding speed | 1000mm/min |
| Control system | KY 980Tc Turning CNC System |
| Tool position | 4 |
| Tool dimension | 8×8mm |
| Tailstock taper | MT1 |
| Tailstock sleeve diameter | 20mm |
| Travel of tailstock | 25mm |
| Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.02mm |
| Power | 220VAC / 110VAC |
| Weight(NW/GW) | 50/65KG |
| Overall dimension | 750*450*1300mm |
| Packing size | 850*470*470mm |
>>
