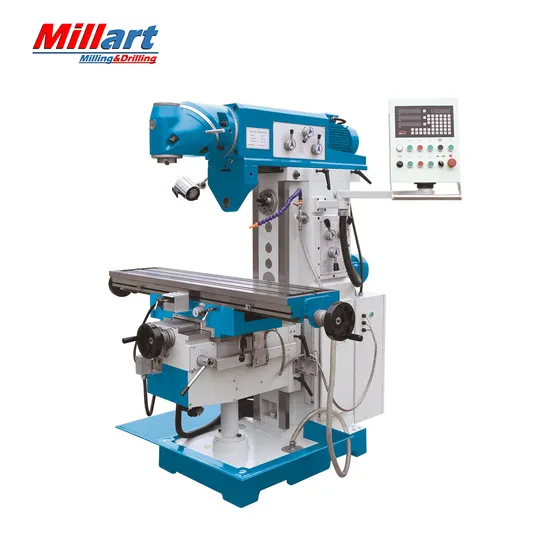

Universal Milling Machine XL6430 Vertical Horizontal Milling Machine

US$6,000.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

XL6430

Structure

Bed type

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Table Size

1270*300 mm

Arm Travel

400mm

Spindle Taper

ISO40

Transport Package

Wood Case

Specification

CE ISO9001 RoHS

Trademark

L&T

Origin

Tengzhou China

HS Code

8459590000

Production Capacity

200 PCS/Month

Product Description

Universal Milling Machine (XL6430)Vertical and Horizontal Milling Machine
Features:
1. X Y Z auto feed by Servo Motor
2. Universal swivel head can mill any angle surface through front half-sphere
3. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process
4. 3-axis Digital Readout, Rotary table, Protective cover are available as optional
Technical Parameter:

Model	Unit	XL6430
Table size	mm	1270*300
T-slots(NO./width/pitch)	mm	31480
Max table travel - X/Y/Z	mm	720/300/400
Spindle taper	-	ISO40
Distance between spindle center line and table surface	mm	75-475
Distance between spindle nose and table surface	mm	260-660
Distance from horizontal spindle center line to arm surface	mm	180
Spindle speed range	r.p.m	(V)11 steps 45-1660 (H)12 steps 35-1500
Arm travel	mm	400
Table feed(X/Y/Z)	mm/min	No finite
Table rapid speed		1000/1000/750
Main motor power	Kw	2.2(V)/ 3(H)
Torque of X/Y/Z axis AC servo motor	Nm	10
Cooling pump motor power	W	40
Flow of cooling pump	L/m	12
Overall size	mm	172016801860
Net weight	Kg	1850

Standard accessories:

Draw bar	Spindle brake
Coolant device	Ball screws in all axis
Coolant tray	Automatic central lubrication
LED machine light	Mill arbors
Universal mill head	Tools

Optional accessories:

3-axis digital readout	Horizontal & vertical rotary table
Mill chuck set	Clamping kit set 58-pcs
Machine vice	Universal dividing head
