Thin Wall PVC Hose Clear Plastic Tubing with Low - Medium Pressure 3 Inch 4 5 6 8 10 12 19 mm 1 2 Bar

Product Description

Product Description:

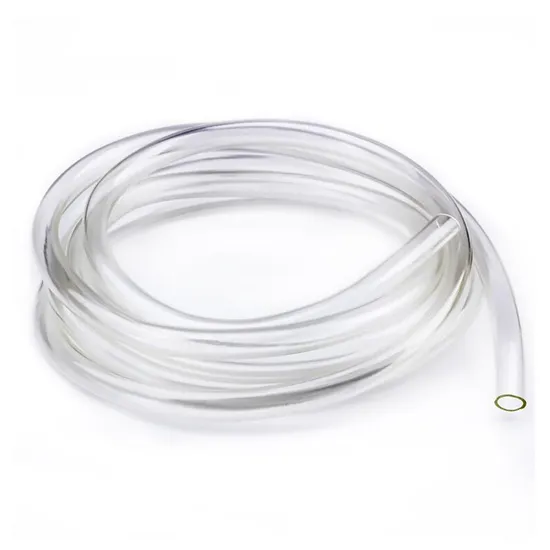

Product Name:	clear pvc tubing
Material:	pvc
Size:	from 1/8inch (ID 3mm) to 2inch (ID 50mm)
Wall Thickness:	from 1mm to 4mm
Color:	clear / blue / red / yellow / black / green / orange etc.
Working Pressure:	from 2bar (30psi) to 4bar (60psi)
Temperature Range:	from -5 to 65 degree C.
Length/roll	10m, 20m, 30m, 50m/roll or other.
We support OEM/ODM order.

Non Toxic PVC Clear Hose is also PVC clear hose, PVC water level hose, PVC transparent hose, PVC clear tube, vinyl tubing, PVC single layer hose, clear unreinforced hose, etc. Which is designed for low pressure delivery in multiple applications.
Features:
non toxic, clear PVC wall allows full visual flow of materials, weathering resistant, smooth tube for resistance to collection or blockage, easily characterized by a round, rectangular or square shape, different colors available, different sizes to fit standard commercial barbed fittings, we can also make the hose with non-phthalate formulations.
Specification:

Inner Diameter		Outer Diameter		Weight	W.P.(at 23ºC)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
1/8	3	0.196	5	0.017	4	60	100	300
1/6	4	0.236	6	0.02	4	60	100	300
1/5	5	0.314	8	0.04	4	60	100	300
1/4	6	0.354	9	0.047	4	60	100	300
5/16	8	0.433	11	0.059	4	60	100	300
3/8	10	0.511	13	0.071	4	60	100	300
1/2	12	0.59	15	0.08	3	45	100	300
5/8	15	0.708	18	0.1	3	45	50	150
3/4	19	0.866	22	0.13	3	45	50	150
1	25	1.181	30	0.28	2	30	50	150
1-1/4	32	1.496	38	0.43	2	30	30	90
1-1/2	38	1.732	44	0.52	2	30	30	90
2	50	2.283	58	0.9	2	30	30	90

Product show:
Product Process:
Application:
Suitable for low pressure transfer of various Fluids and air, such as fuel, water, light chemicals, oxygen, gas for watering systems, peristaltic pumps, electrical and thermal insulation, analytical systems in plant equipment, laboratories, watering system and many other low pressure industry applications. Related Product:
Our Factory:
QINGDAO EASTOP PLASTIC PRODUCT CO., LTD is a professional manufacturer and exporter of PVC flexible hoses, has over 14 years' experience of production and 10 years' experience of export. Our product range cover PVC layflat hose, PVC fiber reinforced hose, PVC steel wire reinforced hose, PVC helix suction hose, PVC garden hose, hose couplings, hose clamps, hose assemblies and so on, widely used in industry, agriculture and home, suitable for many uses such as Air, Water, Oil, Gas, Chemical, Powder, Granule and many more. All of our products can be produced according to PAHS, RoHS 2, REACH, FDA, etc.
Our factory is located in Shandong province, covering an area of 70,000 square meters and 10 standard workshops, equipped with 80 production lines, annual output is about 20,000 tons, annual export is more than 1,000 TEU. With strong technical force and strict QC process, we can supply quality products with competitive prices in the shortest time.
Till now, we have served more than 200 customers in 80 countries, such as UK, USA, Australia, Spanish, Colombia, Chile, Peru, Nigeria, South Africa, Vietnam and Burma etc. What we supplied to our customers is not only our products, we supplied a complete process, including products, after sales, technology support, finance solutions and so on. And we are constantly trying to search for new raw materials and manufacturing processes for our products to meet the updated satisfaction and expectations of our customers.
