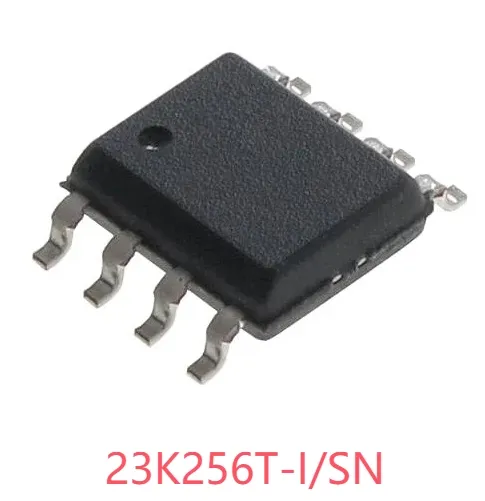

23K256T-I/SN 23K256-I/SN 23K256T SRAM Chip IC

Product Description

description 23K256T-I/SN : SRAM Chip Sync Single 3.3V 256K-bit 32K x 8 25ns 8-Pin SOIC
Mfr. Part#: 23K256T-I/SN
Datasheet: (e-mail or chat us for PDF file)
ROHS Status:
Quality: 100% Original
Warranty: ONE YEAR

Memory Size:	256 kbit
Organization:	32 k x 8
Access Time:	25 ns
Maximum Clock Frequency:	20 MHz
Interface Type:	SPI
Supply Voltage - Max:	3.6 V
Supply Voltage - Min:	2.7 V
Supply Current - Max:	10 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Mounting Style:	SMD/SMT
Package / Case:	SOIC-8
Packaging:	Tube
Data Rate:	SDR
Memory Type:	SDR
Moisture Sensitive:	Yes
Number of Ports:	1
Product Type:	SRAM
Series:	23K256
Factory Pack Quantity:	100
Subcategory:	Memory & Data Storage
Type:	Synchronous
Unit Weight:	0.019048 oz

23X256 is a 256-Kbit Serial SRAM device. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS ) input. Communication to the device can be paused via the hold pin (HOLD ). While the device is paused, transitions on its inputs will be ignored, with the exception of Chip Select, allowing the host to service higher priority interrupts.
