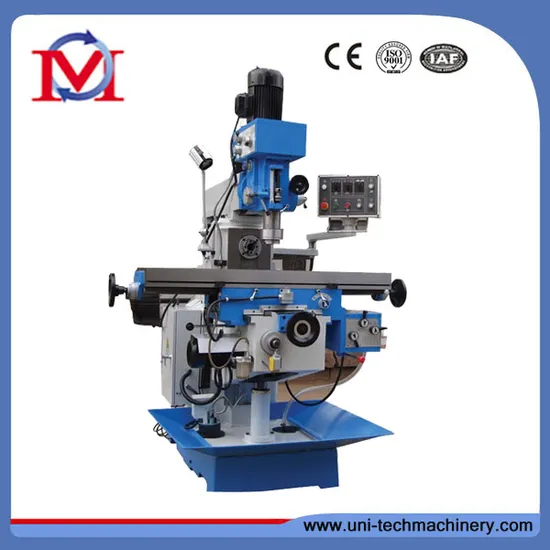

Horizontal and Vertical Drilling Milling Machine (ZX6350ZA)

US$4,000.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

ZX6350ZA

Type

Knee-and-Column Milling Machine

Object

Hardware

Structure

Ram

Milling Cutter Type

Cylindrical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

Normal Precision

Certification

CE, ISO 9001

Condition

New

Spindle

ISO40

Table Size

1250X320mm

Max. Drilling Dia.

50mm

Table Travel

600X300mm

Max.Boring Dia.

120mm

Spindle Speed

115-1750 Rpm(Vertical)

Drilling Dia.

50mm

Speed for Horizontal

40-1300mm

Main Motor Horizontal

2.2kw

Transport Package

2pcsin One Wooden Case

Specification

ISO9001

Trademark

UNITECH

Origin

Shandong, China

HS Code

84592900

Production Capacity

300 Sets/Month

Product Description

horizontal and vertical Drilling Milling Machine (ZX6350ZA)
Main features:
1. Z-automatic feed milling head
2. Rectangular guideway on lifting platform
3. High stability
4. Hardened on X, Y, Zaxes.
5. Vertical head swivels +- 45 degree.
6. X--axis travel can be with 800mm (Optional)
Standard accessories
Work light, coolant, drill chuck, mill chuck, spindle arbors, horizontal arbors, wrenches.
Optional Accessories:
DRO on X, Y, Z--AXIS.
Universal dividing head.
Rotary worktable.
Clamping kit.

Specification MODEL//CODE NO.	Unit	Technical parameters ZX6350ZA//65023
Spindle taper		MT4
Max. driiling diameter	mm	50, 30
Spindle travel	mm	120
Sleeve feed	mm/min	0.08/0.15/0.25
Distance form vertical spindle to column	mm	200~500
Distance form vertical spindle to table	mm	100-400
Distance form horizontal spindle to table	mm	0~300
Distance form horizontal spindle to arm	mm	175
Spindle speed range	r/min	60~1500/8(vertical); 40~1300/12(horizontal)
Table size	mm	1250 * 320
Table travel Range of longitudinal, cross travel	mm	600 × 300 × 300 22~555/810(MAX. )
Up/down speed of table	mm	560
T of table (NO. /WIDTH/DISTANCE)	w	3/14/70
Main motor	kw	1.5(vertical)2.2(horizontal)
Motor of table power feed	w	750
Up/down motor of headstock	w	750
Coolant pump motor	w	40
Speed of coolant pumps		12
Overall dimension	mm	1700 × 1480 × 2150
N. W. /G. W.	kg	1450/1600
