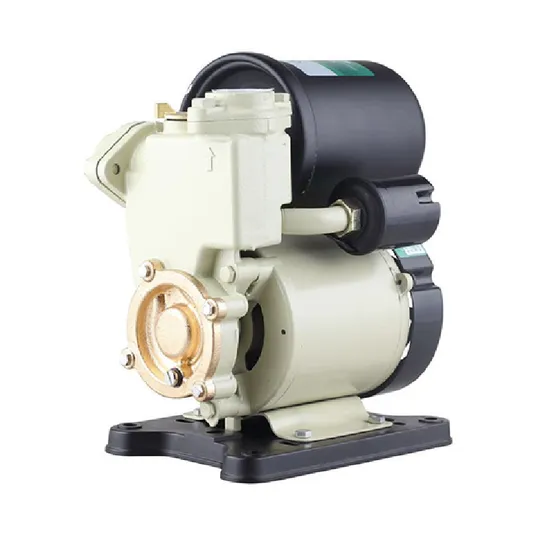

Automatic Booster Pressure Self Priming Centrifugal Peripheral Water Pump with Brass Impeller

Product Description

Pump
>> Pump Body: cast iron & support under special anti-rust treatment
>> Impeller: stainless steel impeller, brass impeller, ppo impeller
>> Mechnical Seal: carbon / ceramic / Stainless Steel
Motor
>> Bulit-in thermal protector for single phase motor
>> Motor with copper winding
>> Motor Housing: Steel-plate, Aluminum alloy
>> C&U bearing
>> AISI 304 shaft or 45# carbon steel
Working Range
>> Liquid: clean liquids without suspended solids, non-aggressive
>> Liquid temperature: -10ºC and +100ºC
>> Ambient temperature up to +40ºC
>> Max. working pressure 10 bar
>> Continous service S1
>> Insulation: B
>> Protection: IP44
Application
>> Household Water Supply
>> Water Supply System
>> Cooling System
>> Boost System
PW WATER PUMPS FOR COLD AND HOT WATER1. Self-priming: For the first time using, the entire pump chamber should be filled with water. 2. Automatic: It is powered on or off by automatic system: turn on the tap the pump works, and turn off the tap the pump stop working. 3. Booster: Stable and powerful pressure is controlled by pressure sensor and flow sensor. Besides, thermal protector in motor will interrupt current when motor overheats.
Technical Data

Model	HP	W	Current (A)	Capacitor (uf)	H.Max (M)	Q.Max (L/min)	Pipe Size	Pressure Set (bar)	Tank (L)
PW200	0.2	150	1.2	6	25	28	1"X1"	0.7-1.5	1
PW300	0.3	250	1.5	8	30	32	1"X1"	1.3-2.3	1.5
PW370	0.5	370	1.8	10	34	35	1"X1"	1.3-2.3	2

FAQ Q: Are you trading company or manufacturer ? A: We are factory.
Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

---
