Edge Protector Paper Corner/Edge Board Angle Corner Protector with Punching Machine

Product Description

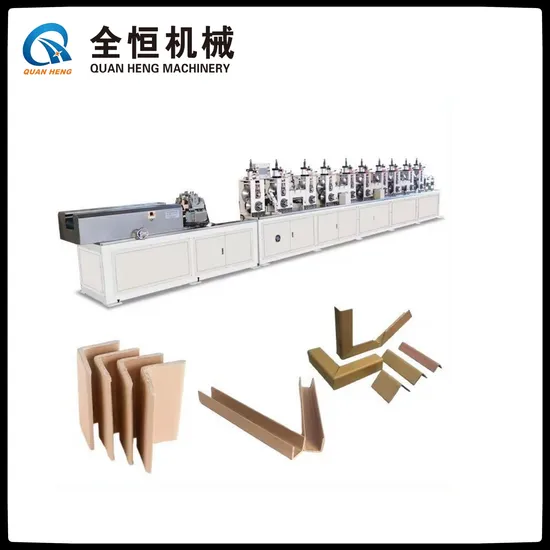

Automatic kraft paper edge production machine
Product Description Host Size:L*W*H: 9300*700*1400(mm)
Coverage:L*W : 28m*3m
Host weight : 2975kg
Total weight: 5715kg
Paper Angle Protection Specification: Wide20-100mm
Long30-9000mm
Thick2-8mm
Production speed: 0-60m/min
Control mode: numerical control
Host power: 7.5kw+4.3kw*2
Raw material: The surface of the paper 150g-200g
Core paper 300g-700g
Cutting mode : Servo tracking cutting
Number of operators :1-2people

Control System
Main engine power	7.5kw+4.3kw*2
PLC controller	Machine specific
Interface	Machine specific
Frequency converter	Robicon
Major Executing Devices (Contactors, etc.)	Omron/Chint
knob	Siemens
Button/emergency stop	Siemens
Pneumatic Componen	Airtac/Tianao/chengdi/detai
Synchronization Controller	servo motor

Configuration device
Area size:	28m*3m
Host Size:L*W*H	9300*700*1400(mm)
Octagonal device	Ten groups
Heating device	Four sets of double rolling wheel heating
Paper holder type	Right angle fixed hoisting paper holder
Glue supply	Stainless steel heating automatic circulation double-sided gluing
Top Paper Device	Stainless steel belt driven face paper basin
Host Mesa	Stainless steel
Transmission device	Conveyor belt and receiving table
Table cutting device	numerical control
Punching die	one
Application tools	A set of inner hexagonal wrenches
Drive system
Host power	7.5kw
Main engine speed	1400r/min
Hub diameter	258mm
Hub height	150mm
Reducer model	WPA120
Bearing	Harbin/Wanxiang
Cutter motor	Servo Motor 4.3kw *2ITLC
Linear guide rail	Square

Detailed Photos
Company Profile

Packaging & Shipping
FAQ Q:Are you manufacture or trading company?A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company ,so we are the source factory, welcome to be our agency.Q:Do you inspect the finished products?A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .Q:Does the packing strong?A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.Q:How about after-sales service process?A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy. Q.Where is your factory?A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!Q. Do you have Import & export right?A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency

---
