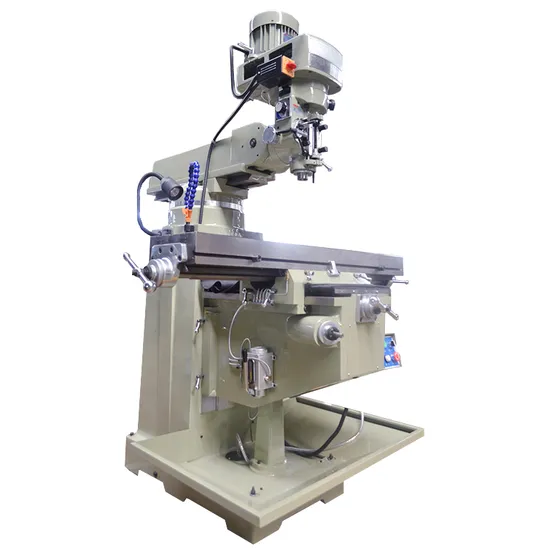

Dro Wholesale Industrial Metalworking Turret Type 4h Milling Machine for Sale

Product Description

Product Description
FEATURES
1.The slider adopts dovetail for more stability.
2.Large workbench area and wide working range.
3.Taiwan screw and easy to operate.
4.No. 4 turret milling head from Taiwan.
5.The base and bed are integrally cast for greater rigidity
The base and bed of the turret milling machine are integrated, strong rigidity;
The turret milling head can reach more than 4540 revolutions, with higher precision;
The spindle can feed automatically and can rotate left and right, front and back respectively

Optional accessories
Pneumatic broach Digital display(DRO) The plug
Optional types(vertical&horizontal spindle)


Product Parameters

Specification	4H turret milling machine
Bench size(mm)	1270×254
Table travel(mm)	780-850
Table lateral travel(mm)	400
Vertical travel(mm)	450
Number and size of T-groove (mm)	3X16
Telescopic arm stroke (mm)	400
Distance between spindle end and bench(mm)	420
Spindle taper	R8
Spindle stroke (mm)	127
Spindle speeds range(r.p.m)	60HZ 60-4540
Rotary angle of the head	±45°
Main motor power(Kw)	3
Overall dimensions(mm)	1700×1660×2000
Net weight (kg)	1200

Packaging & Shipping

Company Profile

Henan Rowdai Machinery Equipment Co.Ltd Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying
our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.

---
