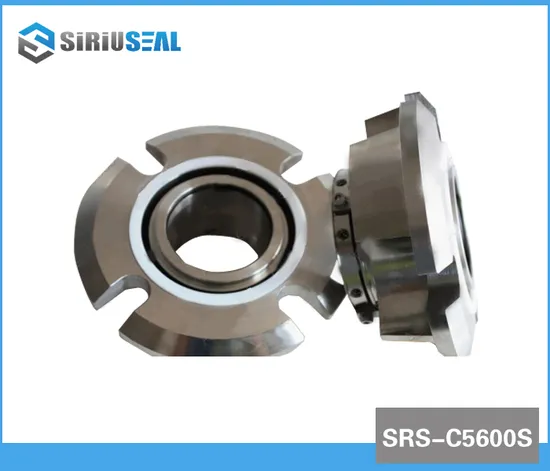

SRS-5600s Cartridge Seal Replace John Crane Type 5610 Pump Shaft Seal Parts

US$40.00
1-99 Pieces
US$1.00
100+ Pieces

Basic Info.

Model NO.
SRS-5600
Speed
≤25m/S
Temperature
-30ºC~205ºC
Performance
High Pressure
Standard
Standard
Type
SRS-5600s
Balance
Balanced
Rotary Face
Sic/Tc
Seal Ring
Car, Sic, Ssic, Tc
Springs
304, 316, Hast.C
Replace
John Crane 5610
Transport Package
SRS Standard or Customised
Trademark
SRS
Origin
China
HS Code
8484200090
Production Capacity
50000PCS/Year

Product Description

Product Description
Suggested Operation Limits
Temperature: -30ºC-205ºC
Speed: <=25M/S
Pressure: <=2.1Mpa
Size: 24mm-140mm/1"-5.5"

Combined Material
Rotary Face: SIC/TC
Stat Ring: CAR/SIC/TC

SRS-C5600S have C5610 (Single with wave spring), C5615 (Single metal bellow design) and 5610Q (with Quench)
The type seal can replace with Johncrane type 5610 cartridge seal.

Features:
1. A common seal head/mating ring set, utilized throughout all versions, is reversible to allow rotating seat/mating ring or rotating seal head operation, and is interchangeable with metal bellows seal heads.
2. Reversible seal head.
3. Optimized primary ring design for greater reliability.
4. Non-clogging wave spring outside the product.

Recommended Applications:
1. Process Pumps
2. Other Rotating Equipment

This seal gives you the flexibility to cover more applications with less inventory, which means your maintenance is simplified, downtime is reduced, plant operating efficiency is increased and costs are lowered.
