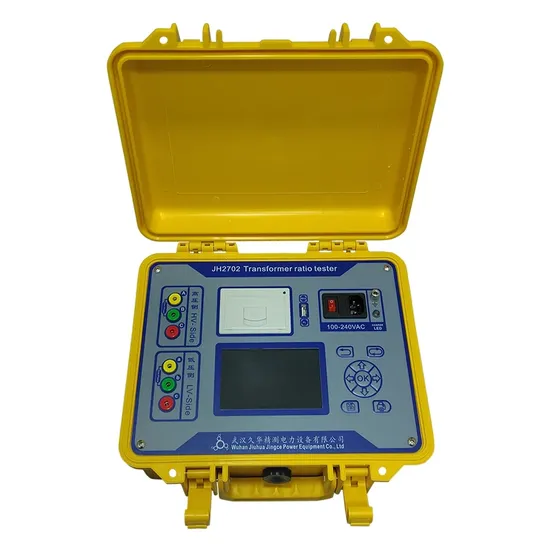

Jh2702 Transformer Single/Three Phase Manufacturing Portable Turns Ratio Meter TTR Tester

Product Description

Product Interview:
For the power system, transformers are the core equipment in the system, so the long-term and reliable operation of transformers will be related to the stability and reliability of the entire system. Before the newly installed transformer is put into operation and in accordance with the preventive testing regulations of State Grid, it is required to conduct regular turns ratio or voltage ratio tests on the operating transformer. The traditional variable ratio bridge operation is cumbersome, the reading is not intuitive, and necessary conversions need to be made. The test result is only the value of one phase change ratio. This transformer ratio tester overcomes the shortcomings of traditional ratio bridge testing. The screen adopts a large high-resolution LCD display screen, which is convenient for on-site use. It has a Chinese menu prompt function, easy and intuitive operation, and can complete three-phase ratio testing in one go. The testing speed is fast and the accuracy is high.
Performance Characteristics:1. The three-phase CNC sine inverter power supply output has soft start and soft stop functions, so the testing speed is fast and the accuracy is high.
2. Three phase transformer, single-phase transformer, PT, CT, Z-type transformer ratio, group, polarity testing function.
3. CT ratio polarity testing function.
4. It has angle difference testing function during single-phase testing.
5. The tap changer can be tested up to 99 gears.
6. Wide testing range, up to 10000.
7. High and low voltage reverse connection reminder.
8. Output short circuit reminder.
9. Non power-off clock and date display; The data storage method is local storage, with 100 test data pieces. The stored data can be transferred to a computer (PC);
10.Thermal printer printing function.
11. Small size, light weight, convenient for carrying and use.
Technical Indicators

Range	0.8~10000
Accuracy	± (reading × 0.1%+2 words) (less than or equal to 1000)
	± (reading × 0.2%+2 words) (greater than 1000 but less than or equal to 3000)
	± (reading × 0.3%+2 words) (greater than 3000)
Resolution Ratio	0.9~9.9999(0.0001)
	10~99.999(0.001)
	100~999.99(0.01)
	1000~9999.9(0.1)
	10000(1)
Workingpower supply	AC100-240V, 50/60Hz (battery charging voltage)
Host weight	4.5Kg
Volume	320mm(L)×280mm(W)×135mm(H)
Operating temperature	-10ºC~50ºC
Relative Humidity	<90%, no condensation

FAQ
1. Is your company a sales company or a manufacturer?
Our company is an industrial and trade enterprise, with our own factory and lab, self-produced and self-sold. We were founded in 2013 and have 12 years of production experience, which has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time?
After the goods have been ordered, it takes about 7 working days for production if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is in well package with fast shipping.
4. What are the after-sales terms?
We offer free consulting service, 1 year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
6.Is customization supported?
We support customization in language use according to your requirement if the quantity ordered reaches.

---
