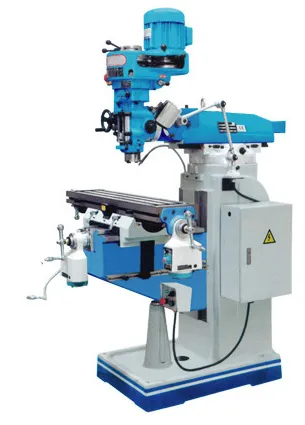

Vertical Horizontal Universal Turret Swivel Head Radial Milling Machine For Sale XH6325

Product Description

TURRET MILLING MACHINE FEATURES:
Feature of X6323
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6325:
Rectangular guide way on Y-axis and Z-axis is feature a good rigidety
The guide way on saddle is lined with TF wearable material
The worktable surface and 3 axis guide way are hardened and precision ground
Feature of X6325D:
Rectangular guide way is adopted both on Y and Z axis.
The guide way on saddle is lined with TF wearable material. Which makes the machine stably
and rigidly, also makes it beautiful and easy to operate.
5HP milling head motor and quill diameter is 100MM
Feature of X6333
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6330A
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
SPECIFICATIONS:

MODEL	XH6325
Features	Rectangular guide way on Y/Z-axis
Table size	305×1370
Table loading	350Kg
Long travel	800mm
Cross travel	420mm
Vertical travel	420mm
T-slot No. and size	3×16
Ram travel	500mm
Distance from spindle nose to table surface	0-405mm
Spindle hole taper	ISO40(V) 7:24(H)
Sleeve Diameter	85mm
Spindle travel	127mm
Spindle speed	(standard): (shift grade) 50HZ: 66-4540(V) 60HZ: 80-5440(V) 50HZ: 45-980(H) 60HZ: 55-1180(H)
Auto. quill feed	(three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution
Spindle motor(Vertical)	3.75KW/5HP(380V) 2.2KW/3HP(220V) Milling Head from Taiwan
Horizontal motor	3KW
Head swivel	90°
Head tilting	45°
Dimension of package	1516×1550×2250
G.W/set	1450Kg

---
