Product Details
Product Description
Product Description

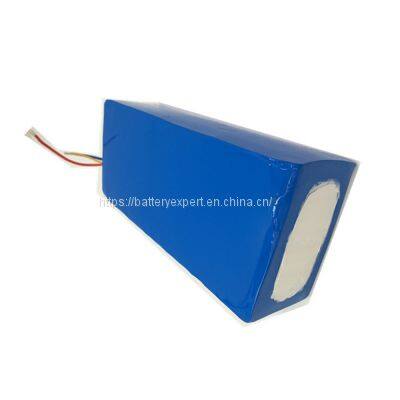

24v 20Ah 480WH Lithium Ion Li-Ion battery pack with BMS for 350W engine:
PRODUCT DESCRIPTION
| No. | Item | Specification | Remarks |
| 1 | Brand Name | OEM |
|
| 2 | Model No. | ICR24V20AH |
|
| 3 | Nominal Capacity | 20Ah | 0.2 C5A discharge |
| 4 | Nominal Voltage | 25.2V |
|
| 5 | Discharge Voltage (Min.) | 19.25V |
|
| 6 | Charging Voltage (Max.) | 29.4V |
|
| 7 | Charging Current (std.) | 0.2 C5A |
|
| 8 | Discharging Current (Max. continue) | 1 C5A |
|
| 9 | Discharging Current (Max. temporary) | 1.5C5A |
|
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH |
|
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH |
|
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH |
|
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH |
|
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH |
|
| 13 | Battery Cell | 18650 3.6V 2.5Ah |
|
| 14 | Battery Box Size | 148mm*140mm*67mm
200mm*160mm*80mm
180mm*150mm*110mm
290mm*110mm*80mm
|
|
| 15 | BMS | included |
|
| 16 | Protection Fuctions | Over charge, Over discharge,
Over load, Short Circuit | Customized Bottle type |
| 17 | Approximate Weight | 2.8kg |
|
| 18 | Cycle Life | 1000 times |
|
| 19 | Warranty | 12 months |
|
Typical Advantage of our lithium Ion battery:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging and no memory effect.
3. Longer cycle life more than 500 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
>>
