| US$6,398.00 | 1 Piece (MOQ) |

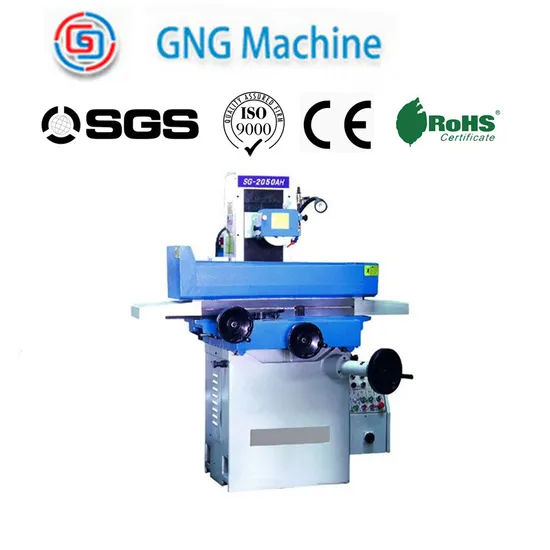

| SG SGA saddle moving surface grinder | ||||
| Item/Model | Unit | SG-2050H/AH SG-2050AHR SG-2050AHD | ||
| table size(WxL) | mm | 200x400 | ||
| max. longitudinal travel | mm | 510 | ||
| max. cross travel | mm | 238 | ||
| max. distance from spindle center to table | mm | 450 | ||
| electro magnetic chuck size | mm | 200x460 | ||
| speed of table longitudinal movement | m/min | 7-23 | ||
| table transverse movement | auto feed | mm/min | 0.1-8 | |
| rapid speed | mm/min | 990 | ||
| feed of handwheel | mm/div | 0.02 | ||
| wheelhead vertical movement | auto feed | mm | ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model) | |
| rapid speed | mm/min | ---(H/AH model) / 460 (for AHR model) | ||
| feed of handwheel | mm/div | 0.005 | ||
| grinding wheel | speed | rpm | 2850(50Hz),3450(60Hz) | |
| eize(ODxWxID) | mm | 200x20x31.75 | ||
| spindle motor | kw | 1.5 | ||
| hydranlic motor | kw | 0.75 | ||
| cooling pump motor | kw | 0.04 | ||
| elecating motor | kw | ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor) | ||
| cross feed motor | kw | 1.04 | ||
| max.loading capacity of table(include chuck) | kg | 120 | ||
| total rated power | kw | 3 | ||
| height of machine | mm | 1675 | ||
| floor space(LxW) | mm | 2050x1400 | ||
| Gross weight | kg | 1600 | ||
| package dimensions(LxWxH) | mm | 1900x1720x2175 | ||
