Precision CNC Turning Center Lathe

Product Description

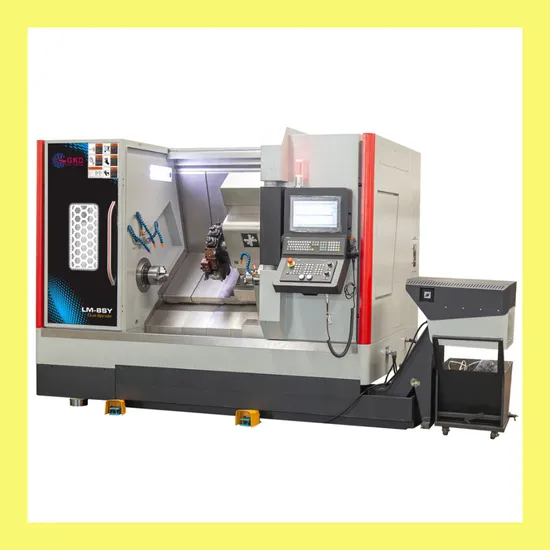

High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center
The CNC turning lathes from Anhui Mingju Intelligent Equipment Co., Ltd. have revolutionized the manufacturing industry with their precision and efficiency. These machines are equipped with double dual spindles and a slant bed design, allowing for a wide range of operations such as drilling, tapping, turning, and boring. They are widely used in industries like automotive, aerospace, medical, and electronics to produce complex and high-precision components.
Explore the components of a CNC turning lathe, its working principle, and its applications with our high precision double dual spindles slant bed CNC lathe CNC turning center.
Product Parameters

Model	LM-6SY
Double spindle/single power turret
Number of axis	7 Axis(X+Z+Z1+C1+C2+Y+TD)
Max turning diameter on the bed	Ф600mm
Max processing length	500mm
Max processing diameter	Ф500mm
Main spindle nose	A2-5
Main spindle hole	Ф56mm
Bar hole diameter	Ф46mm
Main spindle speed	0-6000rpm
Main spindle Chuck size	6"(Hydraulic chuck)
Sub-spindle nose	A2-4
Sub-spindle hole	Ф46mm
Bar hole diameter	Ф36mm
Sub-spindle speed	0-6000rpm
Sub-spindle chuck size	5"(Hydraulic chuck)
Main Spindle power	7.5KW
Sub-spindle power	5.5KW
X1 axis power	3.1KW
Y1 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power	3.1KW
Hydraulic pump motor power	3.1KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Outer diameter shank	25mm
Inside diameter shank	Ф32mm
Living tools milling speed	0-4000rpm
X1/Y1/Z1/Z2 axis rapid speed	25m/min
X1 axis travel	600mm
Y1 axis travel	140mm(±70mm)
Z1/Z2 axis travel	500mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.002mm
X/Y/Z/Z1 axis position accuracy	0.003mm
Oil tank capacity	72L
Cooling tank capacity	180L
Machine weight	5480KG
Machine size	3800*2300*2300mm
Controller	Simens 828D

Company Profile
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
For years, Anhui Mingju has been dedicated to providing high-quality CNC machining centers worldwide. Our products include vertical machining centers, high-speed gantry machining centers, horizontal machining centers, CNC lathes, and more. With 5 production bases across China, we offer a complete range of CNC metal cutting machine tools for various industries.
Committed to excellence, Anhui Mingju focuses on high-speed, high-precision, and high-efficiency intelligent equipment to meet customers' needs effectively. Our products are widely used in aerospace, automotive, and other manufacturing sectors, ensuring top-notch quality and performance.
With a global sales and service network, Anhui Mingju provides comprehensive solutions and after-sales support to customers in numerous countries. Experience the reliability and innovation of Anhui Mingju Intelligent Equipment Co., Ltd. for all your CNC machining needs!
Contact us today for more information.
Our Advantages
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Professional service in CNC machines exporting field
Utilizing Italy and Taiwanese technical expertise for superior manufacturing ability
Flexible payment terms: T/T, Western Union, L/C, Paypal
High quality, safe materials, and competitive pricing
Small orders accepted
Quick responses to inquiries
Safe and fast transportation options
Custom OEM designs available for all customers
Certifications
Packaging & Shipping
After Sales Service
Product Description
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Product Warranty and Support Services:
The quality warranty period for our products is 12 months from the arrival of the shipping commodity at the port of destination. We provide free fittings during the guarantee period, excluding physical damage. Users are required to return damaged fittings at their own cost before we send back alternative parts. After the warranty period, repair or replacement of fittings will be charged.
Our engineers offer online support via email, MSN/Skype, camera, video, telephone, and fax for any installation, operation, adjustment, or maintenance issues. If online support is insufficient, we offer Door to Door service. Customers must assist with visa formalities, prepaid travel expenses, and accommodation for our engineers during their service period. Alternatively, customers can send their engineers for free technical training at our factory.
For more information, please contact Anhui Mingju Intelligent Equipment Co., Ltd.
FAQ
Product Description
Anhui Mingju Intelligent Equipment Co., Ltd.
Product Description
Our company offers high-quality machinery with the following specifications:
Minimum Order Quantity: 1 set
Warranty: 1 year
Bearing Brand: NSK from Japan
Delivery Time: 15-30 days after payment
Warranty Handling: Free maintenance for product quality issues during the warranty period. Free replacement of parts if needed. Buyer covers costs for non-quality-related problems.
Technical Personnel: Upon machine delivery, our engineers will assist with installation at the buyer's site. Buyer covers accommodation and daily expenses. Visa and installation preparation assistance provided.

---
