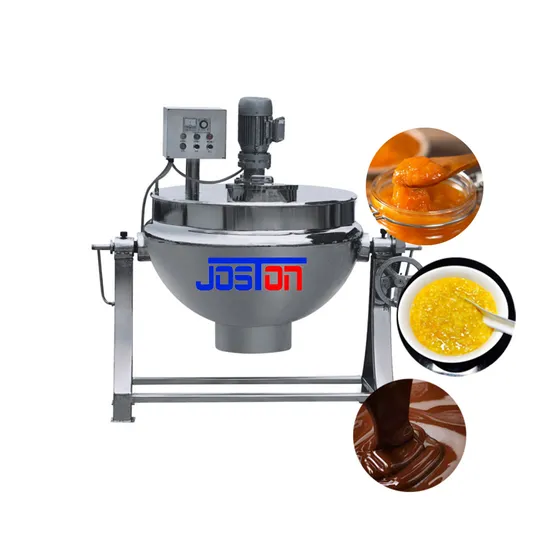

Joston SS304/Ss 316L Electric Industrial Automatic Steam Jacket Kettle Planetary

Product Description

Jacketed kettle is widely used in the processing of sweets, pharmaceuticals, dairy products, wines, pastries, preserves, drinks, cans, bitters and other foods. It can also be used in large restaurants or canteens to cook soup, cook vegetables, stew, porridge and so on. It is a good equipment for food processing to improve quality, shorten time and improve labor condition.
Jacketed kettle is a double jacketed layer structure consisting of an inner and outer spherical pot body. The middle interlayer is heated by steam or electrical ,which is widely used in pharmaceutical ,food and chemical industry ,it can be used to cook ,boiling and concentration .

According to the construction structure ,it can be choose as the following functions:
1) Tilting model and support leg fixing model.
2) top cover mounted agitator model and non agitator model.
3)Electrical heating model and Gas heating model.
4) Open top model and cover lid open model.

Model Item	JCG-100	JCG-200	JCG-300	JCG-500	JCG-1000
Tank volume:L	100	200	300	500	1000
Evaporate capacity kg/h	40	65	75	150	250
Jacket working pressure MPa	>0.2
jacket heating area M2	0.4	1.0	1.2	1.9	3.5
Steam consumption kg/h	44	72	90	165	280
Dimension mm	800*650*950	1400*700*1100	1450*800*1110	1600*900*1150	1900*1300*1950

SUS304 Stainless Steel Industrial Cooking Tank Jam Steam Kettle				JCG-500	JCG-1000
material	SS304 or SS316L			500	1000
Volume	50L-2T (Customized)			150	250
application	Food, pharmaceutical industry, chemical industry, etc
Surface	Mirror or matte, Ra<0.4μm			1.9	3.5
Structure	Tilting type			165	280
	vertical type/Fixed			1600*900*1150	1900*1300*1950
Heating mode	electric heating	fuel gas heating	steam heating
Agitator type	Paddle Mixer
	Scraped Wall
	Without agitator
Mixer speed	low speed
	0-43RPM
PARTS DETAILS	1 half-cover
	2 .Various types of CIP cleaners
	3 Tilting type or vertical type
	4 Inlet and Outlet sanitary valve.
	5 .Electric box
	6.Thermometer (According to customer requirements ).

SERVICEWe have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)FAQ1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.

---
