Lithium Ion Battery Electrode Making Machine Slot Die Coating Machine

Product Description

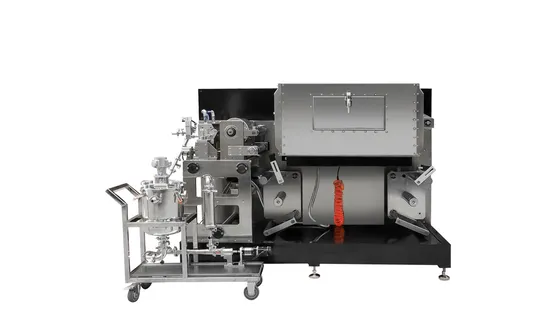

Lithium Ion Battery Electrode Making Machine Slot Die Coating Machine
GN-S360 is an all-in-one machine that can choose a variety of coating methods to meet the needs of different coating processes. It is mainly used for the surface coating process of lithium battery positive and negative electrodes. It is a small experimental coating equipment. This equipment can realize two coating methods: knife coating and slit extrusion coating by switching the coating mode and coating head assembly. Among them, doctor blade coating; can realize continuous coating function. Slit extrusion coating; slit extrusion die head, slit extrusion die head gasket screw pump feed system and coating valve body can achieve continuous coating gap coating stripe coating grid coating and other types Coating function. Features:
Modular structure can achieve two different coating methods Comma bar coating method:
1. Continuously coating is ok, and its with a wider coatingwindow;
2. Use comma bar with precision adjustment mechanism and micrometer to achievethickness adjustment;
3. Feeding with trough; Slot die coatingmethod:
1. Coating valve cooperating with die gasket, user can achieve continuouscoating,intermittent coating, Strip coating, grip coating, etc;
2. Metering pump feeding, slurry closed operation, user can adjust the feedingamount according to the coating speed;
3. Slot die coating with high coating precision and good coatingconsistency; System control:
4. The system uses EtherCAT buscontrol;
5. Substrate closed-loop tensioncontrol;
6. Equipped with infrared, unwinding correction, winding correction, and highcorrection precision;
7. Baking method, hot air oven, hot air circulation, air blowing up, user can get good dryeffect;

Power	5kw	Temperature	Room temp-150ºC
Wet coating thickness	80-400 micron	Oven	1m*1unit(customized)
Max coating width	300mm	Coating speed	0-8m/min continuously adjustable
Correction control	±0.2mm	Heating way	Circulatory sir

Associated products
We also can supply others:
1.)full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Alumimun foil,copper foils,battery separator,etc.
2.)full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3)full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.

---
