Efficient Brass Wire Cutting Machine for Metal Parts Processing

Product Description

Specifiction:

Dimension of the machine(mm)	2100x3050x2100
Dimension of work-table(mm)	650x490
Distance between work-table and floor(mm)	1000
Travels X/Y/Z(mm)	400x300x220
Travels U/V(mm)	80x80
Max. weight of work-piece (Kg)	400
Max. dimension of work-piece (mm)	800x600x215
Dimension of work tank (mm)	850x650x260
Capacity of resin (L)	10
Water tank dimension (mm)	1700x840x530
Criterion power	3x380V 50/60Hz 7kVA
Controlling axe	Five axes/Four axes simultaneity

Configuration:
1.CNC XYZUV axis, AC servo system
2.AC discharge without electrolyte, which reduces the cracking and electrolyte of the work-pieces after machining, thus prolong the life of the mold machined.
3.The state and energy of every discharge impulse is inspected, which reduces the impact to machining wire form the bad discharge impulse, then prevent wire-breaking effectively.
4.24" LCD
5.Windows10, specially designed graphical interface, simple and intuitive operation.
6.Optional Auto wire threading function (AWF function)
7.Precision line roll guide-way, which improves the moving accuracy and sensitivity of the machine, and has quite good servo performance and steady machining.
8.two grades of wire tension system, adopted DC motor
9.copper wire electrode diameter is Φ0.15-Φ0.30mm
High Precise Copper Wire Cut Electrical Discharge Machine
a.CNC language: Chinese/English/Portuguese/Russian/Spanish
b.keyboard,USB, LAN
c.Center-finding /Wire alignment/ Edge-finding /Save and return to reference /Mechanical
d.reference/Three points fixing center/ inclined hole/ coordinates rotation
e.Mirror image of axes X/Y, exchange of axes X/Y, rotation, proportion zoom
f.Save automatically when power-off/ Resume automatically when power-in

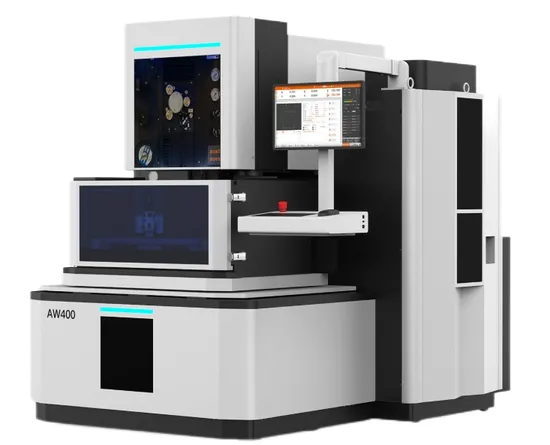

g.AW400 wire-cut machine is integrative machine, which is located on the T-structure bed. Axes X/Y/U/V adopt cross structure.
h.The measure device of Low water level, medium water level and high water level inside the tank.
For more information, please send us message now!

---
