Maize Milling Machines, Maize Flour Mill, Maize Milling Plant

Product Description

5-500ton/24h complete set maize flour mill milling machine plant
More than 30years milling experience
Advanced technology support and customized design.
Perfect after-sales service.
maize mill
includes the cleaning part, peeling part, milling and paking part.
CAPACITY:PROCESSING MAIZE 10-500T/24H

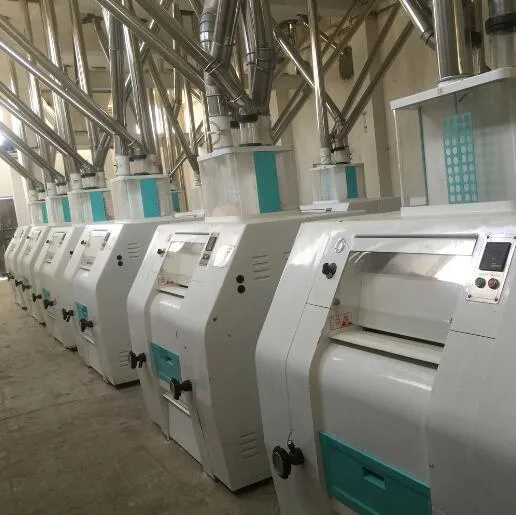

Maize/corn flour milling plant:
maize flour mill adopts(fully dry) mixed peeling demering technology, thus can producing different particle size low fat maize grits, maize flour and maize bran. maize flour is mainly used in food factory, ethanol factory, liquor factory, brewery, lactate factory, maize sugar and maize processing factories.
Machine relative index of maize flour mill
A. Technical index:
1. Product type: maize grits, maize flour, maize bran;
2. Power consumption: 60kwh/ maize ton ;
3. Product yield: maize grits: about 45-55%,
maize flour: about20-30%;
maize bran: 25% or so;
maize grits and maize flour total yield: 75-80%
B. Product quality index::
1. maize flour thickness:40-120 mesh ( thickness can be adjusted);
2. Sand content: not more than 0.002g/kg;
3. Magnetic metal content: not more than 0.003g/kg;
4. Water: preservable: 13.5-14.5%;
5. Color and odour: pink. odour : taste normal;
6. Fat content: 0.5-1%
C. Equipment land occupation:(length*width*height): According to maize flour mill capacity
Main features of the 15-200ton/24h maize milling machine
1. Automatic line, require few person to operate.
2. Complete function including clean corn, peel corn, and grind corn into corn flour and corn grits.
3. Clean corn to remove stone, metal, sand and all sorts of impurities.
4. Peel corn to remove corn skin, remove corn germ, remove black corn hilum. After cleaning and peeling,
it prepares best corn material for further processing into corn flour or grits.
5. One line array up, low maintenance cost.

---
