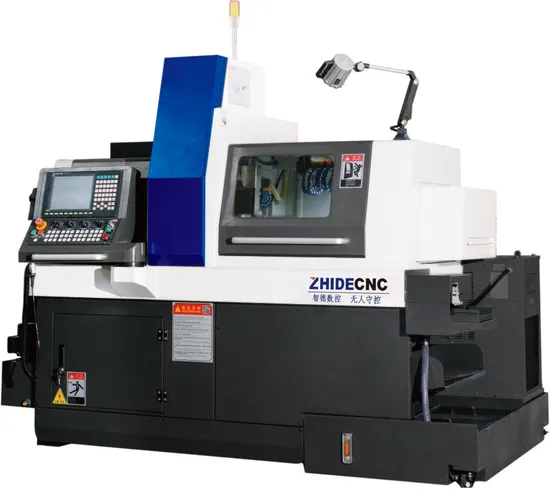

CNC Walking Machine, Suitable for Milling and Turning Composite Centers for Processing Slender Shafts

Product Description

1. The main castings are cast by advanced casting iron by resin sand process. Advanced finite element analysis technology is used for optimize design with advanced structure and reasonable layout. And after the secondary aging treatment, it can ensure the long-term processing stability of the machine tool. The appearance design is beautiful and generous, more humanized.
2, integrated integral base, bed body thick, large guide rail span. Dual-drive guide rail, stable structure and strong rigidity, good precision retention.
3, large torque spindle, with a strong spindle servo motor, smooth operation, high accuracy, durable.
4, machine tool spindle bearing using precision NSK Angle contact ball bearing, can get high precision, high capacity, high carrying capacity, high speed optimization combination,
5, the bidirectional pre-stretching process, greatly reduce the bias torque, improve the force of the wire bar, is conducive to improve the processing accuracy of the machine tool.
6. The front part of the Z-direction guide rail adopts stainless steel protective cover to protect the guide rail and prolong its service life.
7. The two shaft bars are made of high precision ball bars, with scientific and advanced assembly technology, small thermal deformation and high transmission precision.
8, screw support using well-known brands of precision bearings, screw lock nut with high precision lock nut, improve the screw support and locking accuracy, further improve the processing accuracy of the machine tool.
Product Description

Detailed Photos

9, the use of automatic centralized lubrication system, through the set oil injection time interval and oil injection time to lubricate the wire bar, guide rail and other moving parts, to ensure the normal use accuracy and service life of the machine tool;

	Fast moving speed
range of work	Spindle holding rod material diameter
		Φ1 lmm
	Main shaft maximum tapping tooth diameter
	Secondary spindle grip rod material diameter
	Maximum drilling diameter of the secondary spindle	Φ1 lmm
	Maximum tapping tooth diameter of the secondary spindle	M8
	Maximum drilling diameter of the side milling power head	Φ10mm
	Side milling power head maximum tapping tooth diameter
Electric spindle	Spindle power	8.2KW
	The maximum speed of the main shaft	8000r mp
	Secondary spindle power	8. 2 KW
	Maximum rotation speed of the secondary spindle	8000r mp
Maximum movement of the spindle stage	Spindle linkage type activity guide set itinerary	220mm
	No guide set	360mm
	Fixed guide (optional)	220mm
cutter	Number of knives	7 put 16x16mm
	Side power tool	5 with an ER20 power cutter
	Side power head at a maximum rotation speed	6000r mp
	Side power head motor power	1.,0KV
	Spindle end tool	3 with an ER16 power cutter
	Secondary spindle end face cutting tool	3 ER16 fixed tools plus 3 ER16 power tools
Power of the feed shaft motor	Z 1-axis servo-motor power	1.OKW
	Power of the x2-axis servo motor	1.OKW
	The Y-axis servo-motor power	1.5KW (with brakes)
	Z2-axis servo-motor power	0.85K
	Power of the x2-axis servo motor	0.85K
Machine tool appearance	Size (length, width and height)	27 1 0x14 8 0x18 5 0mm
Machine tool weight	weight	4 2 00kg

standard layout
New generation of 220TB
10.4 " TFT LCD color display screen
spindle electric spindle
Automatic lubrication system
Electrical Cabinet Air Conditioning
Machine tool lighting LED working lamp
Deluxe three-color warning lights
1 independent transformer
1 set of floor pads
Random toolbox 1 set
Random attachment 1 set
1 set of outgoing machine data
dander system
Inductor Set
Clamp 1 set (model customer)
Part transfer and feeding device
1 Thermal error accuracy compensation function
Intelligent High Pressure Pump
Oil mist collection system

---
