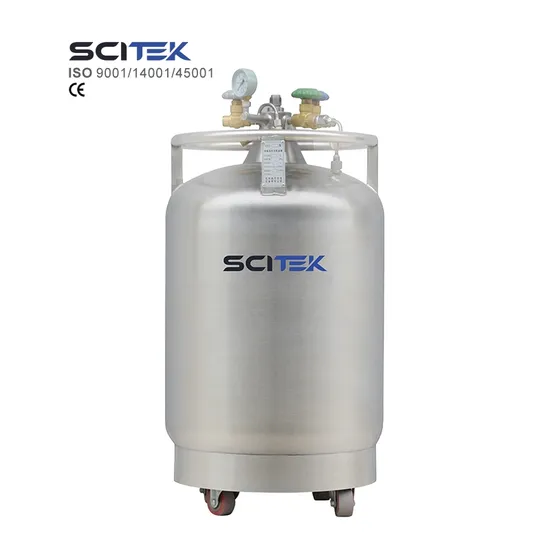

SCITEK Liquid Nitrogen Filling Tank Stainless Steel Tank Liquid Nitrogen Containers

Product Description

Product Description
Key Features
Unique neck design, low evaporation loss rate.
With rollers for easy to move.
Level display is optional.
Regulator is optional for stable pressure.
Solenoid valve is optional.

Reliability
A protective operating ring.
Safe structure.
Stainless steel tank.
The stainless steel structure design is suitable for most environment and reduces the rate of evaporation losses.

Product Parameters

Model	LNC-5-40	LNC-15-40	LNC-30-40	LNC-50-40
Performance
LN2 Capacity (L)	5	15	30	50
Neck Opening (mm)	40	40	40	40
Daily Evaporation Rate Of Static Liquid Nitrogen (%)	3	2.5	2.5	2
Transfusion Volume (L/min)	/	/	/	/
Maximum Storage Capacity
Overall Height (mm)	510	750	879	991
Outer Diameter (mm)	329	404	454	506
Weight Empty (kg)	15	23	32	54
Standard Working Pressure (mPa)	0.05
Maximum Working Pressure (mPa)	0.09
Setting Pressure Of The First Safety Valve (mPa)	0.099
Setting Pressure Of The Second Safety Valve (mPa)	0.15
Pressure Gauge Indication Range (mPa)	0~0.25
Gross Weight (kg)	25.88	31.86	44.81	60.74
Shipping Size(WxDxH) (mm)	390x390x785	490x490x935	500x500x1080	605x605x1250
