Horizontal Expanding Machine with Auto Parts Integral Frame Structure

Product Description

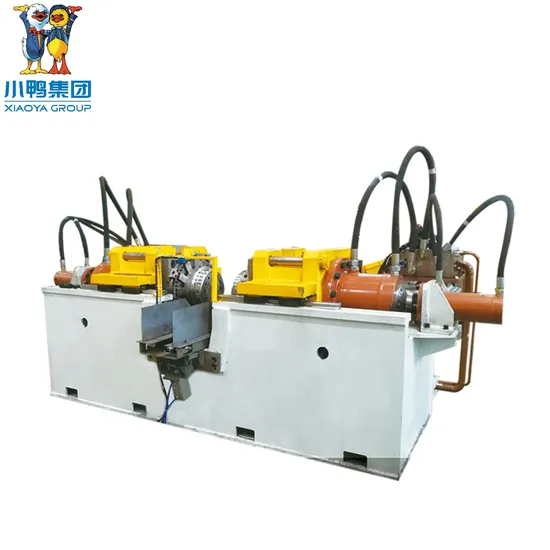

Horizontal Expanding Machine

In the steel wheel rim manufacturing line, the horizontal expanding machine is placed behind the roll forming machine. It is an important piece of wheel rim machinery for expanding and sizing the rim after the roll forming process. With the use of accurate expanding on this expanding press, the diameter of the formed rims can meet customer's design requirements.

No.	Description		Data of Horizontal Expanding Machine
1	Model number		KZJ-200X2	KZJ-315X2	KZJ-500X2
2	rim maximum width		200mm	300mm	500mm
3	rim maximum thickness		4mm	5mm	9mm
4	rim diameter range		200~400mm	300~470mm	450~600mm
5	fast feed cylinder thrust		70KN	110KN	150KN
6	expanding force of hydraulic cylinder		1600KN	2000KN	2500KN
7	rated hydraulic pressure		20MPa	20MPa	20MPa
8	installed power		22KW	33KW	33KW
9	tack time		15s	18s	23s
10	rim calibration diameter tolerance on both ends		0.3mm	0.5mm	0.5mm
12	translation accuracy of machine tool slide block		0.015mm	0.015mm	0.015mm
13	displacement sensor precision		0.01mm	0.01mm	0.01mm
14	Noise and vibration		<85 dB	<85 dB	<85 dB

Main Features 1. The hydraulic expanding machine comes with an integral frame structure that guarantees a high strength and machining accuracy. 2. The expander uses a dual power expanding method, allowing both edges of the rim to be expanded and adjusted. 3. The main sliding block moves on a linear guide, which ensures the high precision and stable movement. 4. A mold is fixed on the main sliding block, which can effectively prevent it from going down, which avoids non-standard work pieces. 5. The molds on the expanding equipment are specially designed for easy disassembly. When changing the molds, they can be lifted out integrally, which saves time. 6. The expanding mold is made up of 12 pyramids with a bevel guiding, enabling a long service life and a high running precision. 7. The expanding machine is driven by a hydraulic system, allowing it a stable performance. 8. An automatic load and unload system is optional.
