Yyh Series Tumbling Mixer, One Dimension Mixer

Product Description

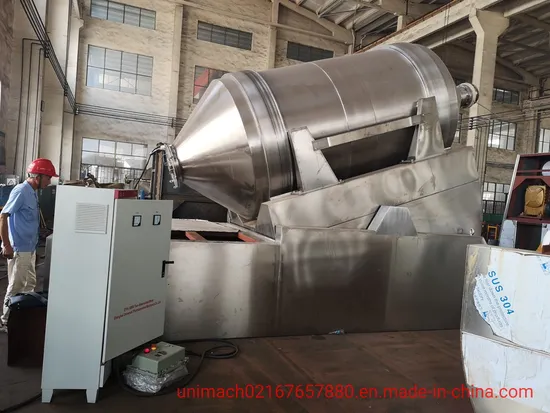

YYH Series Tumbling Mixer
It is a high efficiency tumbling mixer equipment,
The tumbling mixer equipment is suitable for powder
Description
This is a new king of mixing equipment with high efficiency and simple structure which was improved by our company. It mades powder mixed. this machine is easy to clean up, fully meeting GMP demand of pharmacentical trade.
Application and characteritics
This machine is suitable for mixing powder, granule materials in pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry, chemical fertilize industry, agrochemicals industry, etc;
Simple structure, convenient operation;
When operation, the barrel loaded material will make rotating motion around central shaft (i.e. so called single dimension motion mixer), nevertheless material inside the barrel will make three-dimensional motion. Therefore the mixing accuracy of material can be compared with two-dimensional mixer and three-dimensional mixer.

Model	Barrel volume (L)	Loading volume (L)	Max.loading capacity (kg/batch)	Swing (r/min)	Motor power (kw)	Overall dimensions (mm)	Total weight (kg)
YYH-50	50	25	12.5	0-18	0.55	920X440X540	250
YYH-150	150	75	37.5	0-16	0.75	1550X700X900	320
YYH-300	300	150	75	0-14	1.1	1670X850X1050	410
YYH-600	600	300	150	0-13	1.5	1750X950X1300	490
YYH-800	800	400	200	0-12	2.2	2130X1200X1550	560
YYH-1000	1000	500	250	0-12	2.2	2180X1200X1550	740
YYH-1500	1500	750	375	0-12	3	2400X1510X1710	850
YYH-2000	2000	1000	500	0-10	4	2550X1550X1750	1050
YYH-3000	3000	1500	750	0-10	5.5	3000X1650X2000	1380
YYH-4000	4000	2000	1000	0-8	5.5	3150X1900X2300	1650
YYH-6000	6000	3000	1500	0-6	7.5	3500X2200X2500	2300
YYH-8000	8000	4000	2000	0-6	11	3677X2300X2850	3500
YYH-10000	10000	5000	2500	0-6	11	3800X2500X2950	3800
YYH-12000	12000	6000	3000	0-6	11	3800X2500X2950	4500
YYH-15000	15000	7500	3750	0-5	18.5	4730x2900x3100	6000
YYH-20000	20000	10000	5000	0-5	22	6000X3200X3500	8000
Notes:The above capacity is calculated based on specific gravity of powder 0.5g/cm3.

---
