| US$3,000.00-52,550.00 | 1 Piece (MOQ) |

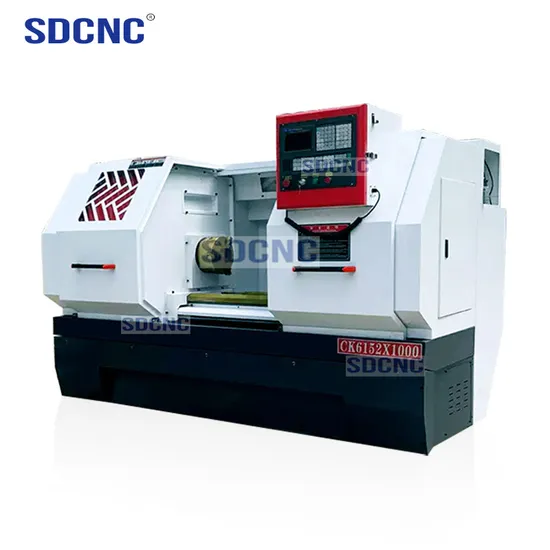

| Model | CK6152*1000mm (GSK980TC3 System) |
| Processing ability | Unit ( mm ) |
| Max. swing over bed | 530 |
| Max. swing over slide | 280 |
| Max. Processing length | 1500mm(Optional:1000/2000/3000) |
| Travel | |
| X/Z axis travel | 310/1500 |
| Spindle nose | A2-8 |
| Spindle | |
| Spindle bore diameter | 90mm |
| Spindle inner hole taper | 100/1:20 |
| Spindle series | stepless |
| Max. spindle speed | 1600rpm |
| Chuck size | Manual chuck K10-250 |
| Main motor power | 7.5 kW |
| Feed turret | |
| X/Z axis torque | 7.5/10N.m |
| X/Z axis rapid speed | 6/8 m/min |
| Turret type | Electicity |
| Tool shank size | 25×25 |
| X/Z axis repeatability | ±0.005 |
| Tailstock | |
| Tailstock diameter | 75 |
| Tailstock travel | 150 |
| Tailstock center taper | MT5 |
| Others | |
| Machine net weight | 3400kg |
| Machine dimension(L×W×H) | 3085×1550×1710 |
| Power supply(power/ electric current) | 12.5kW/20A |
| Standard configuration | |
| Chuck | 250 manual chuck |
| Tailstock | Manual tailstock |
| X axis ball screw | Domestic(Qishan)FD3210-889-1035 |
| Z axis ball screw | Domestic(Qishan)FD2506-407-530 |
| Electricity turret | 4 position |
| X,Z axis screw bearing | Domestic(Derun) |
| Spindle bearing | Domestic P5 |
| Machine casting | Highquality resin sand casting |
| Spindle assembly | Assembly spindle |
| Oil paint | Can be customized color |
| Lubrication | Domestic |
