Bale Breaker for Plastic Bottle Cleaning Recycling System

Product Description

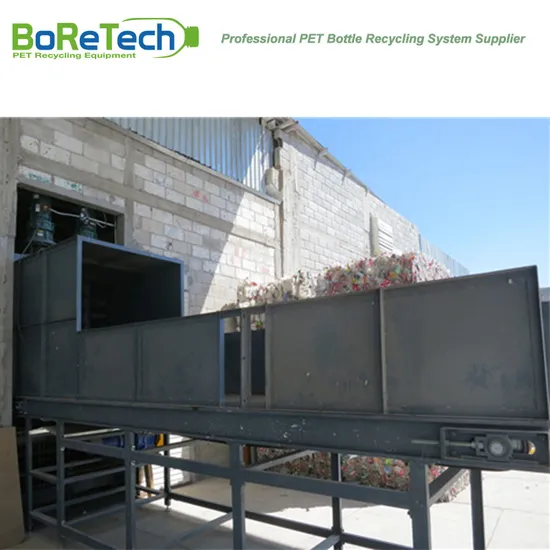

Bale Breaker for PET Bottle Bales

Bale braeker is applied to PET bottle recycling industry to break up PET bottle bales. Cutting the wires of the PET bottle bale manually in the first step, then PET bottle bales will be transported to bale breaker shafts via belt conveyor or chain conveyor. PET bottle bales become loose bottles under the function of powerful rolling paddles.
BoReTech develops two types (Horizontal & Vertical De-baler )of bale breakers on the basis of PET bottle baler dimension and materials conditions which capacity reachs up to 10000 kg/h. Baler breaker shaft adopts carbon steel and paddles adopts alloy steel which is dismountable and friendly to daily maintenance.
BoReTech Bale Breaker has three designs which equiped with two shafts, three shafts and four shafts. Moving speed of belt conveyor and chain conveyor is adjustable,which can avoid clogging. Three shafts bale breaker is particularly suitable for high density bottle bales. Bale breaker has the features of simple operation process, low power consumption and less manpower.

Model	Capacity(kg/h)	Power(kW)	Dimensions(mm)
JBJ1300	1500/3000	11*2	1690*800*3864
WJB1400	3000/6000	15*2	2803*2260*3804
XJB1800	>6000	15+4+2.2*2	7248*3790*2767
WJB1800	>6000	15*3	5495*2260*2870

Capacity will be affected by PET bale packing density.
Our Advantages
BoReTech Bale Breaker has three designs which equiped with two shafts, three shafts and four shafts. Moving speed of belt conveyor and chain conveyor is adjustable,which can avoid clogging. Three shafts bale breaker is particularly suitable for high density bottle bales. Bale breaker has the features of simple operation process, low power consumption and less manpower.
Our service 1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid. 2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Boretech Brief
Boretech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries.Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.

---
