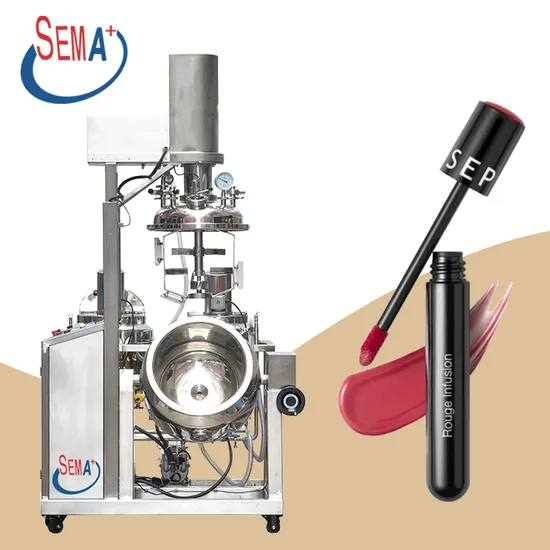

Body Lotion Mixing Equipments Vacuum Homogenizer Emulsifier Mixer 30-50 Liter Laboratory Homogenizer Cream Making Machine

Product Description

The equipment is suitable for emulsification of the pharmaceutical. Cosmetic, fine chemical products, especially the material having high matrix viscosity and solid content. Such as cosmetic, cream, ointment, detergent, salad, sauce,lotion,shampoo, toothpaste and so on. The emulsifier is through the high-speed rotation of the homogenizing head connected to the engine, so that the material will become more delicate, and promote the fusion of oil and water.
Structure:
including main emulsifying pot, water and oil pot, vacuum pump, mixer, emulsify mixer, temperature control system. Safety system work frame and so on.
Depends on customer different requirements, we have different sizes emulsification machine.

Main Mixing tank:	Total Volume:250L	Working volume:200L
	Pressure:-0.1Mpa in pot 0.1Mpa in jacket
	Temperature:≤100ºC
low speed agitator:	speed:0-60(R/min)	power:1.5KW
homogenizer:	speed:0-2800(R/min)	power:4KW
	vacuum degree:-0.09(Mpa)
Vacuum pump:	format: round	Power:1.5 KW
Scraper tank	Dimension (mm):700(900)×650mm(total length 2250mm)
	Work volume L:300	1. Structure: vertical three-layer, fully sealed straight cylinder upper and lower head, support foot installation, flange connection. Mechanical mixing on the tank top. 2. Surface treatment: the inter
	Inside pressure MPa:Air pre	Jacket pressure MPa:<0.1
	Jacket temperature ºC:115	Inside temperature ºC:100
	Heat area m2:1.8	Motor power KW:1.5
	Mixer speed R.P.M:88	Heat power :18KW

Q1. How can I visit your factory?
A1:Please contact with us, and we are warmly welcome you visit our Factory if you have a travel plan.
Q2. How can you know if our machine is suitable for your production requirements?
A2:You can tell us your requirements and send us the sample pictures and videos. If possible, it is best to send samples to us for machine debugging.
Q3. How do you offer technical support? A3:1.Technical support by phone, email or MSN/Skype around the clock 2. Friendly English version manual and operation video CD disk 3. Engineer available to service machinery overseas
Q4. What's your guarantee or the warranty of the quality if we buy your machines? A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5. How could we contact you? A5:Please leave a message and click "send" to send us an inquiry.

---
