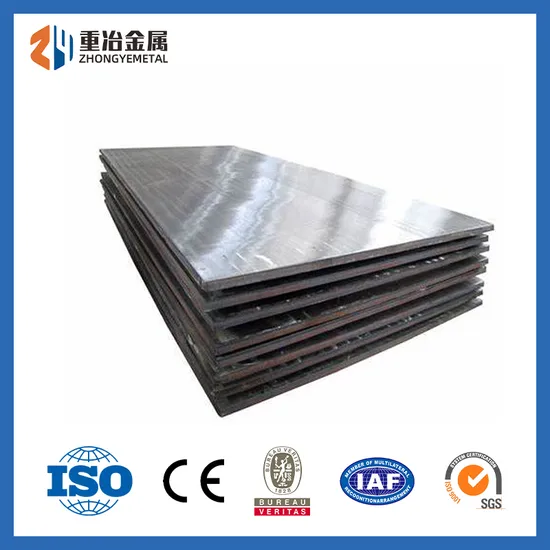

| Product Name | Titanium Sheet , Titanium Plate |
| Standard | ASME SB/B265, AMS 4911, AMS 4919, AMS 4914, ASTM F67, ASTM F136, ASTM F1341, ISO 5832-2, MIL-T-9046 |
| Width | 600mm, 1000mm, 1219mm, 1500mm, 1530mm, 1800mm, 2000mm, 2200mm, 2500mm, 3000mm, 3500mm, or Customized |
| Thickness | 0.05mm - 135mm or Customized |
| Length | 2000mm, 2438mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000 or Customized |
| Size | Titanium Hot-Rolled Plates: (4-100)mm × (800-2600)mm × (2000-12000)mm Titanium Cold-Rolled Sheet: (0.01-4.0)mm × (800-1560)mm × (1mm-6000) mm Titanium Foil/Strips: (0.01-2.0)mm × (800-1560)mm × L Titanium Tube/Pipe: Ф(3-114)mm × (0.2-5)mm × (1-15000)mm Other Size: T (0.6mm - 2.0mm) * W (1000mm) * L (3000mm max) T (3.0mm - 5.0mm) * W (1250mm) * L (3500mm max) T (6.0mm - 60mm) * W (2500mm) * L (7000mm max) Titanium Forgings: Weight per piece ≤ 2000kg |
| Technique | Hot Rolled ; Cold Rolled ; Forging ; Annealing ; Pickling |
| Purity | 99.95% - 99.9% or Customized |
| Surface Treatment | Bright, Polished, Pickling, Acid Cleaning, Sandblasting, Electroplating, Chrome Plating, Zinc Plating, Nickel plating, Electrophoresis, Anodization, Polishing, Powder Coating, Sandblasting, Passivation, Spray painting, Etc |
| Material | TA0, TA1, TA2, TA3, TA4, TA5, TA6, TA7, TA9, TA10, TA15, TA17, TA18, TA19, TB2, TB5, TB6 TC1, TC2, TC3, TC4, TC6, TC11, TC12, TC17, TC18, TC19, TC20, TC24, TC25 GR1, GR2, GR3, GR4, GR5, GR6, GR7, GR9, GR11, GR12, Gr16, Gr17, GR23, Gr25 GRF-5, PT3V, OT4-1, PT7M, 2V, 2B, 3B, TA7ELI, TC4ELI, 7715D, STi80 BT1-00, BT1-0, BT1-2, BT3-1, BT5-1, BT6C, BT6, BT8, BT9, BT14, BT20, BT22 Ti-2Al-2.5Zr, Ti-5Al-2.5Sn, Ti-6Al-4V, Ti-32Mo, Ti-Mo-Ni, Ti-Pd, SP-700 Ti-1023, Ti-1053, Ti-6242, Ti-6242S, Ti-6246, IMI829, IMI834 |
| Features | High Temperature Resistance, Strong Alkali Resistance, High Temperature Resistance, Low Temperature Resistance, Strong Acid Resistance, Strong Alkali Resistance, As Well As High Strength, Low Density Nonmagnetic and Non-toxic; Hot silicon; High corrosion resistance; keep good toughness and plasticity at low temperature, is anideal material of cryogenic vessels |
| Application | 1) Heat exchangers and condensers, Seawater desalination industry, Chemical Industry, Electroplating equipment, Precision instruments, Environmental protection equipment, Auto industry, Medical and Sports industry, Electric power industry 2) Based on High intensity,titanium products tensile strength can be up to 180Kg/mm² 3) Titanium and titanium alloy in aviation industry, is called "space metal"; In addition, in the shipbuilding industry, chemical industry, manufacturing machinery parts, telecommunications equipment, hard alloy, etc have increasingly extensive application 4) In addition, because of the titanium alloy with the human body has very good compatibility, so the titanium alloy can also be artificial bone |
| Package | Standard Seaworthy wooden box or be required. We will packing as the factory, and reach the stander of export, or as the customer request. In addition, We will make the products with good surface protection. |
| Lead Time | Delivery of spot products within 2-3 days after receiving the deposit Customized products delivered within 7-10 days |
| Payment Terms | 30% T/T in advance, 70% T/T 70% L/C at sight balance before shipment |
| Tips | All product sizes can be customized, if you need more information, you can contact us to introduce it to you in detail. |
