Product Description

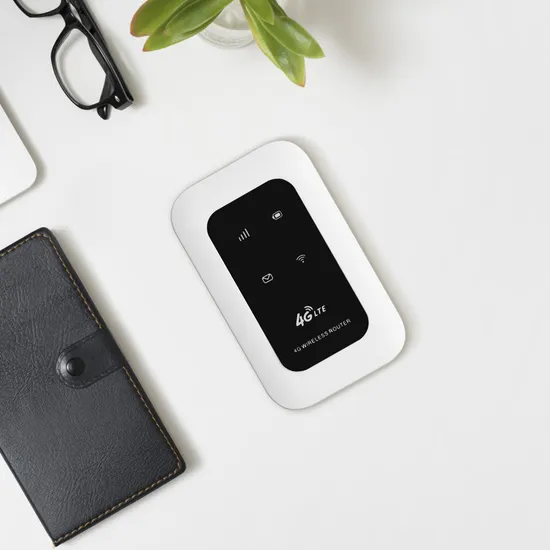

CPE-MINI is a device designed to provide high performance and reliable mobile WIFI connectivity. It uses LTE CAT4 technology so that users can enjoy high-speed Internet access anytime, anywhere, whether they are at home, in the office, travelling or on the road.
This device is a real game changer when it comes to providing wireless internet access and also supports all router functions. This means that users can easily connect multiple devices to a Wifi network and enjoy lightning fast downloads, streaming and web browsing.
Highlights:
• LTE CAT4
• 2.4GHz 1* 1MIMO Up to 72 .2Mbps
• LED Indicator
• 2100mAh removable battery
• Usage scenario: Indoor, Outdoor, Home, Office, etc


Product Parameters

Hardware Parameter
Dimension	98.5*59.3*14.9 mm(L×W×H)
Net weight	83.5g
Working Temp	-20.C to 45.C
Storing temp	-20.C to 60.C
Power adapter	5V/1A
Battery Capacity	2100 mAh (Default), Li-on Battery
Display	LED Indicator
Key/Interface	POWER/RESET,Micro-USB
SIM Interface	ESIM EUICC, USIM Micro-SIM (3FF)
WAN Feature
Chipset	ASR1803S
Frequency Bands	CPE-MINI-EU: • FDD-LTE B1/B3/B5/B7/B8/B20/B28; • TDD-LTE B38/B40/B41; • WCDMA B1/B5/B8; CPE-MINI-AU: • FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28/B66 • TDD-LTE B40 • WCDMA B1/B2/B4/B5/B8
Bandwidth	LTE Band: 1.4/3/5/10/15/20 MHz, comply with 3GPP
Modulation	DL: QPSK/16-QAM/64-QAM, comply with 3GPP UL: QPSK/16-QAM, comply with 3GPP
LTE Antenna	Primary and Diversity 2*2 MIMO, Internal
RF Level	LTE-FDD: Power Class 3 (23 dBm + 2.7/-3.7dB) LTE-TDD: Power Class 3 (23 dBm + 2.7/-3.7dB) UMTS: Power Class 3 (24 dBm +1.7/-3.7dB)
Data Rate	4G: 3GPP R9 Cat4, DL/UL up to 150Mbps/50Mbps 3G: 3GPP R7 DL/UL up to 21Mbps/5.76Mbps
Chipset	ASR5803W
WiFi Standard	802.11b/g/n, 2.4GHz, 20MHz Auto or select channel from 1 to 13
Antenna	1x1, Internal
Connection Availability	Support Max users 10
WiFi Data Rate	802.11b: Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 72.2 Mbps
Web UI & Other Feature
System	Connect Status, Statistics, Network settings, Connected devices
Language	Chinese/English/Español/Português, Can be customized
Mobile Service	SMS Management
	Automatic APN matching according to USIM/APN management
	Security Management
	Auto Data Connection
	PIN/PUK Management
	Network Mode Selection (3G/4G/Auto)
	Traffic Statistics
Router	SSID management
	OPEN, WPA2-PSK, WPA-WPA2 Mixed encryptions
	Router Management
	WIFI Management (Wireless Sleep Settings)
	APN Management
	IPv4/IPv6
	DHCP Server, Dynamic IP
	Firewall (Only Support IPV4)
	PORT Filter/ Port Forwarding
	Access Control, Local Management
OS	Win7/WinXP/MAC OS/Windows8 /Android/LINUX

Company Profile

Packaging & Shipping

FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and so on. You can select the terms of payment which is more convenient for you.2. What about the lead time?Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.3. How about the shipping?When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.4. How can I place an order?(1) Negotiation is agreed upon for the product price and specifications.(2) The Proforma invoice will be sent for confirmation.(3) After the agreement on the proforma invoice, the customer makes the deposit.(4) Manufacturing will be started as soon as the payment is confirmed by our bank.(5) Ship out the goods within the agreed delivery deadline.5. Can you do OEM for us?Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.6. How about the Warranty?There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

---
