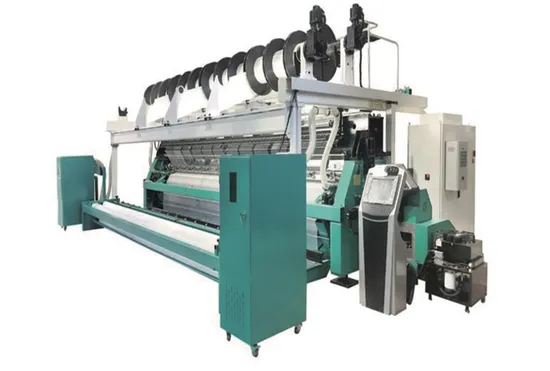

CH Rsmsus-G/Hg Biaxial Weft Insertion Glass Fiber Geogrid Raschel Warp Knitting Machine

Product Description

-Model: AS RSMUS-G/HG
-For the production of biaxial fabrics with course-oriented weft-insertion system and filler yarn feeding -Max. working Width: 213 inches
-Gauge.: E6
Machine Dimensions: 9800*7000*3400mm
- Pattern drive: Pattern disc
-Drive mechanism: Adopt crankshaft and high-speed linkage mechanism, and use constant temperature oil circulation lubrication mechanism
-Bars: 3 (one bar for filler threads, two guide bars)
-Speed:1300RPM
-Needle bed: Carbon fiber
-EBA:GB1,2,3 1KW servo motor
-Dia42" beam shaft
-Electronic fabric take-up
-Electronic fabric batching
-Needles: GROZ BECKERT
-Bearings: SKF+ INNA+FAG
-Total equipment power 35KVA

---
