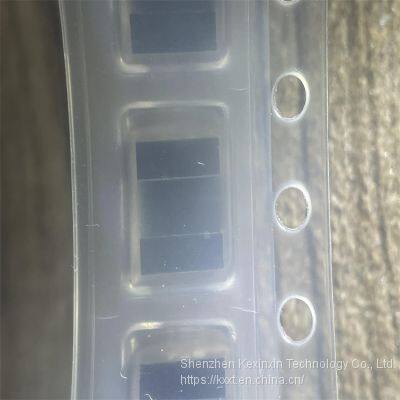

CPI-210 Photo-interrupter LED CITIZEN

Product Details

Product Description

Product Description
Factory
CPI-210 Series
Photo-interrupter
ApplicationS
This can be used as a sensor in the
following applications.
1. Position sensing for compact disc
players and floppy disc drives
2. Position sensing for printer heads or
film in cameras
3. Position sensing for the lens drive unit
of cameras
Absolute Maximum Rating (Ta 25℃)
Input
Power dissipation (mW) 37.5
Forward current (mA) 25
Pulse forward current ※1 (A) 0.1
Reverse voltage (V) 5
Output
Collector dissipation (mW) 75
Collector current (mA) 20
Voltage between collector and emitter (V) 20
Voltage between emitter and collector (V) 5
Operating temperature range (℃) Topr -30～+85
Storage temperature range (℃) Tstg -40～+90
Electro-optical characteristics (Ta 25℃)
input
Forward voltage (V) VF IF=5mA - 1.1 - 1.3
Reverse current (μA) IR VR=5V - - 10
Capacitance between teminals (pF) Ct V=0V, f=1KHz - 30
Peak wave length (nm) λp IF=20mA - 940
output
Collector dark current (μA) ICEO VCE=10V - - 0.1
Light current (μA) IC VCE=5V IF=5mA 50 150 (500)
Coupling characteristics
Rise time (μsec) tr VCE=5V, IC=100μA - 10 -
Fall time (μsec) tf RL=1KΩ - 10

---
