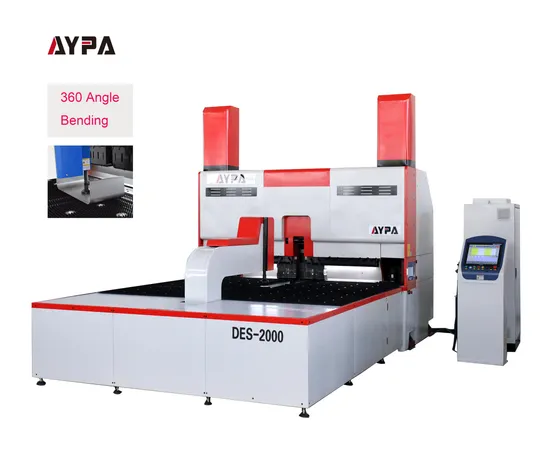

25 Axis Intelligent Cut Steel Press Brake Aluminum Copper Plate CNC Bender Automatic Panel Folding Bending Edge Machine for Metal Plate Pipe Tube

US$65,800.00 1 Piece (MOQ)

Basic Info.

Model NO.

DES-2000

Warranty

1-year

Condition

New

Certification

RoHS, ISO 9001:2000, ISO 9001:2008, CE

Automation

Automatic

Suitable for

Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Type

Cnc Bending Machine

Driven Mode

Full Electro Servo

Bending Length

2000mm

Bending Height

170-300mm

Min. Bending Thickness

0.15 mm

Max Bending Thickness

2.5 mm

Loading Material

Fully Automatic by Robot Arm

Customization Level

Full

ODM

Available

Bending Angle

0-360°

Bending Material

All Metal Sheet

Feeding Method

Optional: Pressed or Sucked

CNC System

Taiwan Syntec

Servo Motor

Synmot

Gear Reducer

German-Rouist

Guide

German-Rouist

Transport Package

Wooden Case, Foam and Plastic Film

Specification

5100* 2700* 2800mm

Trademark

AYPA

Origin

China

HS Code

8462240000

Production Capacity

300sets/Year

Packaging & Delivery

Package Size

510.00cm * 270.00cm * 280.00cm

Package Gross Weight

18000.000kg

Product Description

25 Axes Freely Cut Punch Steel Press Brake Aluminum Copper Plate Bender Automatic Panel Bending Machine
Product Description AYPA is proud to introduce the intelligent flexible panel bender.
√ Tabular programming is visual and handled easily.
√ Users can monitor the machine operation and workpiece output by cellphone APP any time.
√ AYPA automatic bender can bend complex shapes without molding and needn't replace tools.
√ Fully closed loop controlling system supports 25 axes linkage.
√ AYPA bender can match with robot arm in automatic flow line.
√ It's widely used to produce cabinet, fire door, kitchenware, refrigeration, and aluminum walls.
Bending Workpiece Display
Detailed Photos* Q235 steel plate
* High temperature annealing process* 42CrMo forging material
* Customized knives available
Product Parameters

Model		DES-1200	DES-1400	DES-2000	DES-2500	DES-3000
Max. Continuous Bending Speed		≤0.2sec/each bending	≤0.2sec/each bending	≤0.3sec/each bending	≤0.5sec/each bending	≤0.6sec/each bending
Max. Bending Length		1000mm	1400mm	2000mm	2500mm	3200mm
Max. Bending Height		170/210mm	170/300 mm	170/300 mm	170/300 mm	170/210 mm
Max. Bending Thickness	stainless steel	1.0mm	1.2mm	1.2mm	1.2mm	1.2mm
	Carbon steel	1.2mm	2.0mm	2.0mm	2.0mm	2.0mm
	aluminum	1.5mm	2.5mm	2.5mm	2.5mm	2.5mm
Min. Bending Thickness		0.15mm	0.15mm	0.15mm	0.15mm	0.15mm
Bending Degree		0-360°	0-360°	0-360°	0-360°	0-360°
Accuracy of Bending Angle		±1°	±1°	±1°	±1°	±1°
Accuracy of Feeding Length		±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Feeding Method		Sucked/ Pressed	Sucked/ Pressed	Pressed	Pressed	Pressed
Feeding Table		Brush+ Universal ball	Brush+ Universal ball	Brush+ Universal ball	Brush+ Universal ball	Brush+ Universal ball
Min. One-step Forming Size on All Four Sides		200*280mm	200*280mm	200*280mm	200*280mm	200*280mm
Min. One-step Forming Size on Single Side		150mm	150mm	150mm	150mm	150mm
Noise Level		≈40db	≈40db	≈40db	≈40db	≈40db
Main Power		380V	380V	380V	380V	380V
Outline Dimension (mm)		3100* 1500* 2800	4500* 2000* 2800	5100* 2700* 2800	5700* 3100* 2800	7000* 3800* 2800
Approx. Weight (Tons)		10	11	18	19	21

Packaging & Shipping
Company Profile
FAQ1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and product photos.
