2025 Bcmc Bridge Stone Cutting Machine for Sintered Stone Granite Quartz Marble Laser Stone Cutting Machine Best Stone Bridge Saw for Granite

Product Description

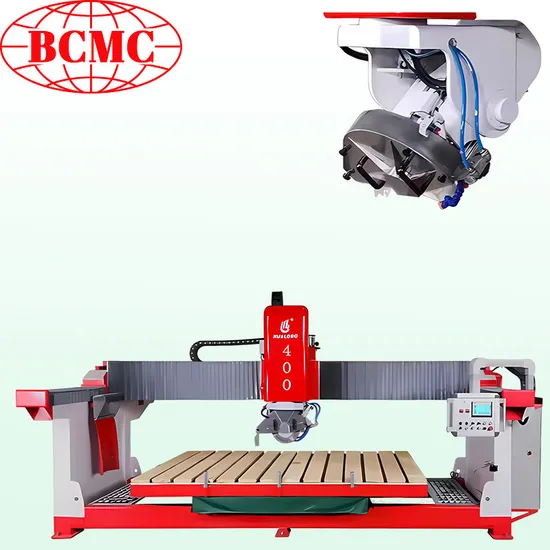

HUALONG Machinery HLSQ-350 is a kind of integrated construction bridge saw. This kind of machine can doing the work of granite, marble, sintered stone, tile, porcelain etc. cutting. The whole appearance is beauty and perform well. Fluently in stone cutting and processing.
Main Features: 3 interpolated axis which can move in X, Y, Z axis together with the cutter head turning and rotation in one time. Siemens PLC touch screen control system. Easy control and interactivity. Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing. Automatic cross cutting repeatedly so easy by pushing one-button. Available for manual cutting for doing some simple machining work. Cutter head can rotate in 90 degrees and tilt in 45 degrees automatically for chamfer work. The workbench can tilt in 85 degree and rotate all around.

TECHNICAL DATA HLSQ-350
Configuration	Diameter of saw blade	mm	Φ300 - Φ350
	Dimension of working platform	mm	3200 x 2000
	Power of main motor	kw	15
	Power of tool slide reciprocating motor	kw	1.1
	Power of crossbeam shifting motor	kw	1.5
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	1.5
	Gross power	kw	21.3
Main Performance Parameters	Max. length of horizontal cutting	mm	3200
	Max. thickness of cutting	mm	50
	Water consumption	m3/h	2
Measurement	Gross weight	kg	3000
	Dimension (L x W x H)	cm	5400x2200x2200

Detailed Information For Spare Parts:
Control System
Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions, which offer friendly and inteligent control.
Linear Guide
Quality linear guide used on crossbeam and carling for high precision of cutting and long lifespan.
Electric Cabinet
Quality electrics used to ensure stable performance.
Laser Reticule Apparatus
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Metal Water Tank (optional)
Optional choose for collecting water for recycling. Save your cost and being more environmental.
Remote controller(optional)
Easy controlling the movement in 3 axes in distance conveniently
Hydraulic Giant (optional)
For cleaning the machine and keep it tidy.
Application:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades

---
