| US$160,000.00-170,000.00 | 1 Set (MOQ) |
| Items | Parameters and configuration | Remarks | ||

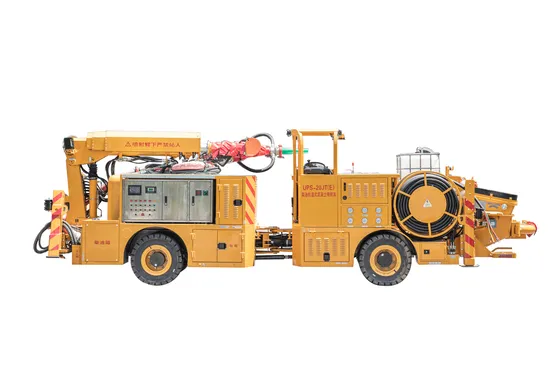

| Parameters | UPS-20JT(C) | |||
| Total Weight(kg) | 10700 | |||
| Dimension(L×W×H,mm) | 7670×2050×2350(±50) | |||
| Actual concrete spraying capacity | 20m3/h | |||
| Power mode (dual power) | Driving: Diesel engine (retractable boom, pumping and cleaning equipment) Working: External 380V AC | |||
| Total power (engine/motor, kw) | Engine:97 kw Motor:37+37(Total power 74 kw) | |||
| Maximum concrete spraying pressure (MPa) | 7.5 | |||
| Configuration | ||||
| Chassis | Manufacturer | Anhui Jarlo Construction Machinery Co., Ltd. | ||
| Engine | Type | Four-cylinder water-cooled turbo | ||
| Manufacturer | Commins | |||
| Rated power(kw/rpm) | 97/2300 | |||
| Exhaust emission standard | National 4 | |||
| Driving and steering | 4-Wheel drive, 4-wheel steering | |||
| Front axle/rear axle manufacturer | Fenyi | |||
| Articulate Steering Angle(°) | 40 | |||
| Brake system | Driving: hydraulic wet type Parking: spring brake, hydraulic release | |||
| Gradeability | 20° | |||
| Turning radius | 3950/5850mm | |||
| Driving speed | Max. 12km/h | |||
| Min. Ground Clearance(mm) | 260 | |||
| FOPS & ROPS | Satisfied | |||
| Items | Parameters and configuration Model:UPS-20JT(C) | Remarks | ||||
| Concrete jet pump | Manufacturer | Anhui Jarlo Construction Machinery Co., Ltd. | ||||
| Type | Piston pumping system | |||||
| Capacity(m3/h) | 20m3/h | |||||
| Concrete specification | slump | 12~18(cm) | ||||
| Max.Aggregate size | 25(mm) | |||||
| Shotcrete aggregate particle size | Max. 25(mm) | |||||
| Concrete delivery valve type | S Pipe valve | |||||
| Concrete pumping pressure | 7.5(MPa) | |||||
| Concrete bore size × stroke | φ160*800(mm) | |||||
| Main cylinder diameter | 90(mm) | |||||
| Hopper volume | 0.4(m3) | |||||
| Hopper loading height | 1.25(m) | |||||
| Vibrator | 380V | |||||
| Boom of concrete spraying machine | Manufacturer | Anhui Jarlo | ||||
| Structure type | Main arm rotation, spray arm pitch + telescopic | |||||
| Maximum effective spray range | Upward | 10(m) | ||||
| Forward | 8(m) | |||||
| Downward | 3(m) | |||||
| Width | 16(m) | |||||
| Boom rotation angle | 360° | |||||
| Boom pitch range | (Upward 64° / Downward 40° ) | |||||
| Axial rotation range of nozzle sea | 360(°) | |||||
| Axial swing range of nozzle seat | 240(°) | |||||
| Nozzle swaying angle+movement | 8°*360° Rotation | |||||
| Operation | Dual control: 100 meters wireless remote control + 16 meters wired | |||||
| Remote control system | JARLO | JARLO | ||||
| Boom balance valve | Italian | |||||
| Conveying pipeline(mm) | Steel pipe:80 Hose:76 | |||||
| Conveying pipeline cleaning | Water washing + air washing | |||||
| Hydraulic system | Main oil pump | Type and manufacturer | Electric proportional piston pump PUSH | |||
| Rated pressure | 28(MPa) | |||||
| Flow | 110(L/min) | |||||
| Main pump valve | Taiwan | |||||
| Swing cylinder valve | Taiwan | |||||
| Auxiliary oil pump | Type and manufacturer | Piston pump, | ||||
| Rated pressure | 28(MPa) | |||||
| Flow | 41(L/min) | |||||
| Air compressor | Nominal volume flow | 7.3(m3/min) | ||||
| Motor nominal power | 37(kw) | |||||
| Exhaust pressure(Mpa) | Rated pressure0.55MPa | |||||
| Accelerator automatic batching system | Manufacturer | JARLO | ||||
| Type | Hose pump | |||||
| Flow | 0~800(L/h) | |||||
| Delivery pressure | 10(bar) | |||||
| Accelerator flow valve | American Hydraforce | |||||
| Accelerator tank volume | 500 L | |||||
| High Pressure washing pump | Manufacturer | Black cat 1812 | ||||
| Max. Output pressure (MPa) | 15 | |||||
| Output flow(L/min) | 15 | |||||
| Water tank volume(L) | 175 | |||||
| Electrical System | Motor protection level | IP55 | ||||
| Safety protection | Leakage protection, safety grounding | |||||
| Controller form and manufacturer | Special controller, Germany IFM | |||||
| Low voltage control electrical appliance brand | Schneider | |||||
| Cable | Cable drum drive method | Hydraulic drive | ||||
| Cable specifications | 3*50+1*16 | |||||
| Cable length | 100m | |||||
| External power requirements | Alternating current 380V,200KVA | |||||
| Other configurations | Working lamp | LED | ||||
| Hydraulic legs | Available | |||||
| DOC+CDPF | Available | |||||
| Automatic fire extinguisher | Available | Optional | ||||
