Essential Oil Distiller for Steam Distillation Oil Making and Extracting Distiller Equipment From Herbs Plants and Flowers

Product Description

Usage Scope :
Thermal Reflux Extractor And Concentrator is applicable to the extraction and concentration of Chinese herbal medicine ,like herbal leaf ,stem ,flower ,seed ,root ,fruits , tea and natural products ,like food additive ,and the recovery of volatile aromatic oil, with the output of the herbal extraction solution concentration in semi-solid status ,the ptorduct proportion density reach 1.1-1.38.
working methods:
Thermal Reflux Extractor And Concentrator is incoprated the extractor tank functions and evaporator functions together ,so this equipments can extractor the herbal raw material and also can evaporator the water and solvent from the extraction solution too. so it have the advantagous as below point
1.multifunctional tank strcture :it can work for the various type herbal raw material .
2.extraction time is fast and short compare with the common traditional extractor tank .
3.solvent and water consumption is all much less .
4.energy saving ,like steam consumption ,cooling water consumption
working pressure:
Thermal Reflux Extractor And Concentrator can working in different pressure as the herbal raw material requirement : extractor & concentrator in atmospheric pressure ;extractor in atmospheric pressure& concentrator in vacuum pressure ;extractor &concentrator in vacuum pressure ;steam distill volatile oil .especially for the water based and solvent extractor etc.process .
Thermal Reflux Extractor And Concentrator Working principle:
The extractor solution outlet from the bottom of the extractor tank to the single effect concentrator to evaporate,and the evaporated solvent condenser then reflux back to the extractor tank as the fresh solvent . The fresh solvent mixture with the solution completely and evaporate again,till to extractor all the activity ingredents from the raw material herbs .
Thermal Reflux Extractor And Concentrator structure and Features:

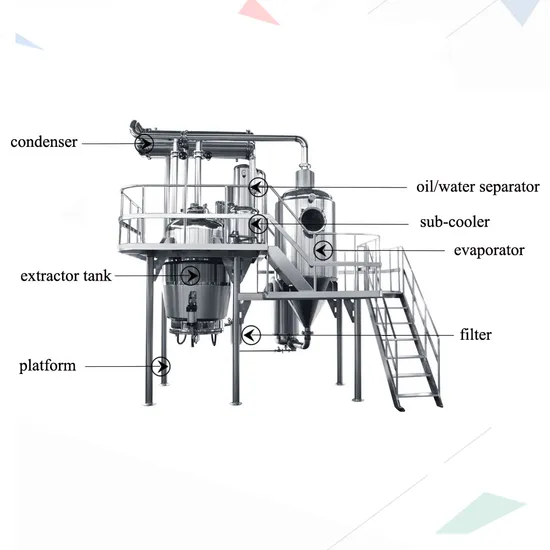

Multifunctional herbal Thermal Reflux Soxhlet Extraction And Concentrator Machine including extractor tank,single effect concentrator ,condenser ,oil/water separator,water(solvent ) automatic drain system,pipeline,platform and control panel.
Thermal Reflux Extractor And Concentrator operation mode:
Manual operationand PLC/HMI automatic operation.
Thermal Reflux Extractor And Concentrator main parameter:
1.extractor tank capacity :50L-10000L
2.material is SS304 and SS316L
3.heating source : steam/electrical heating thermal oil
4.cooling medium : water ,chiller
5.vacuum pump system ( optional )
Thermal Reflux Extractor And Concentrator Technology data Specification:

Model Item	RHL-1.0		RHL-2.0		RHL-3.0		RHL-6.0
	extractor	concentrator	extractor	concentrator	extractor	concentrator	extractor	concentrator
Steam pressure: MPa	0.3	0.2	0.3	0.2	0.3	0.2	0.3	0.2
Working pressure:MPa	≤0.09	-0.084	≤0.09	-0.084	≤0.09	-0.084	≤0.09	-0.084
Jacket temperature : ºC	142	132	142	132	142	132	142	132
Working temperature ºC	≤100	60	≤100	60	≤100	60	≤100	60
Evaporator capacity :KG/H	500		800		1000		2000
Heating area: m2	6.2		9.8		12.2		25
Condenser area: m2	21		30		44		82
Steam consumption:kg/h @3bar	600		950		1200		2500
Cooling water consumption:kg/h Inlet temperature is 25ºC,outlet temperature is 32ºC	25		35		50		90
Dimension (L×W×H)	4000×1800×4600		4500×2200×5900		5200×2400×7250		6600×2800×7550

SERVICEWe have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)FAQ1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.

---
