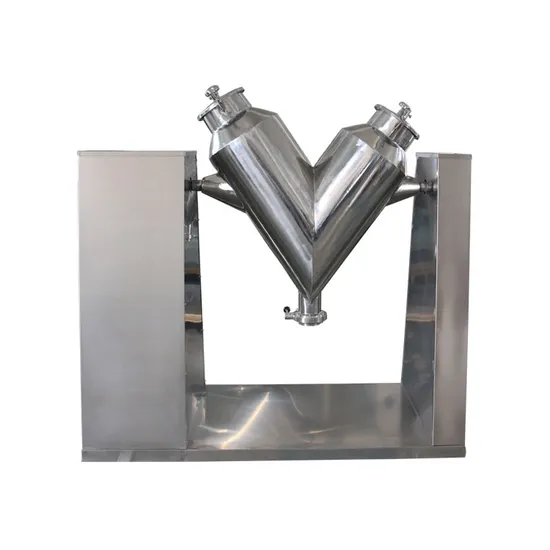

Vh1000 V Type Small Laboratory Chemical Food Dry Powder Mixer

US$500.00-3,000.00 1 sets (MOQ)

Basic Info.

Model NO.
VH14/20/30/50/100/200/300/400/500/600/800/1000
Application
Granules, Powder
Application Area
Pharmaceutical
Certification
ISO
Condition
New
Control System
Button Control
Cooling Method
No
Heating Method
No
Main Material
Stainless Steel
Mixing Capacity
40%
Speed Control
Single Speed
Speed Range
< 30 R/min
Stirring Type
Rotate
Temperature Control
Without Heating
Working
Diffusion Mixer
Material Processed
Chemicals, Food
Dimension(L*W*H)
Various
Warranty of Core Components
1 Year
Key Selling Points
Automatic
Capacity
40%
Usage
Food
Installation
Drawings Introduction
Material
304 Stainless Steel
Range of Spindle Speed(r.p.m)
1 - 12 r.p.m
Core Components
Motor, Gearbox
Voltage(V)
110V, 220V, 380V
Product Type
Mixing Machine
Motor Power(Kw)
0.55-6.6
Layout Type
Verticle
Warranty
1 Year
Transport Package
Export Wooden Case
Trademark
Jincheng Merchinery
Origin
Jiangsu, China
HS Code
8479820090
Production Capacity
15 Set/Sets Per Month

Packaging & Delivery

Package Size
171.00cm * 83.50cm * 173.00cm
Package Gross Weight
340.000kg

Product Description

Model Barrel volume(L) Working volume(L) Rotating speed(r/min) Overall size(mm) Power(KW) Net weight(kg)
VH3 3 1.2 0-60 590*285*480 0.06 13

VH6~VH14
Model Barrel volume(L) Working volume(L) Rotating speed(r/min) Overall size(mm) Power(KW) Net weight(kg)
VH6 6 2.4 24 650*305*720 0.37 36
VH10 10 4 24 710*325*700 0.37 48
VH14 14 5.6 28 820*365*840 0.55 52
Model Barrel volume(L) Working volume(L) Rotating speed(r/min) Overall size(mm) Power (KW) Net weight(kg)
VH14 14 5.6 28 930*375*920 0.55 72
VH20 20 8 28 1000*420*880 0.55 82
VH30 30 12 23 1120*405*1050 0.75 94
VH50 50 20 20 1300*460*1200 1.1 150
VH100 100 40 18 1560*705*1500 1.5 180
VH200 200 80 15 1965*860*1750 1.5 300
VH300 300 120 13 2220*920*1950 2.2 520
VH500 500 200 12 2660*1250*2400 2.2 600
VH1000 1000 400 12 3220*1500*2840 6.6 1000
FAQ How to Order
1. Customer send us an inquiry.
2. Confirmmachine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us boutQuality , Service, Market Feedback & Suggestion.And we can do better
About after sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
