Bore Hole Drilling Rig DTH Drill Rig Water Well Drilling Rigs

Product Description

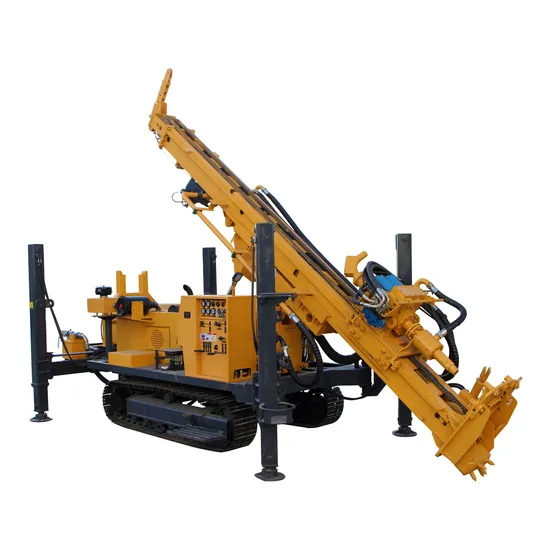

Product DescriptionIntroducing our Steel Crawler Mounted Water Well Drilling Rig Machine, designed for efficient and reliable drilling operations. This versatile rig is perfect for various applications, including deep water well drilling, borehole drilling, and more.
With a range of drilling depths available, including 100m, 150m, 200m, 300m, 350m, and 600meters, our drilling rig can meet your specific requirements. The crawler-mounted design ensures excellent mobility and stability, allowing you to access even challenging terrains.
Our water well drilling rig is equipped with advanced features and cutting-edge technology, ensuring precise and efficient drilling. The high-quality steel construction guarantees durability and long-lasting performance, making it suitable for heavy-duty applications.

GL200S Technical Parameter
Max. Drilling Depth	200m
Drilling Hole Dia.	90-315mm
Working Pressure	1.7-3.0Mpa
Air Consumption	17-35m3/min
Drill Pipe Length	3m
Drill Pipe Dia.	76mm/89mm
Axial Pressure	4T
Lifting Force	14T
Lifting Speed	2.5m/min
Push Speed	0.5-5m/min
Fast lifting Speed	35m/min
Max.Rotation Torque	4500-6500Nm
Rotation Speed	50-70r/min
Working Hoist Lifting Force	1.5T
Mud Pump Flow Rate	20L/min (optional)
High Pressure Hydraulic Legs Stroke	1.5m
Drilling Efficiency	10-35m/h
Travel Speed	2Km/h
Grade ability	30°
Weight	5.4T
Dimension	3.9x1.7x2.15m
Diesel Engine	77KW(Yuchai )
Application formation	loose layer or bedding rock
Drilling Method	Top Hammer Hydraulic Rotating and feeding,
	Down the hole hammer or mud pump drilling

ApplicationKeywords: Deep Water Well Drilling Rigs, Borehole Drilling Rig, Water Well Drilling Machine, Drilling Equipment, Bore Hole Drilling, Drilling Rig, Drilling Machine, Crawler Mounted, Water Well Drilling Rig, Machine
idely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

Detailed Photos
GL200S
>>With automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
>>Drilling Efficiency is 10-35 M/h, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
GL300S
>>Equipped with a robust diesel engine boasting a power of 77kw, this drill machine is built to handle even the most challenging drilling tasks.
>>Its impressive maximum drilling depth of 330 meters allows you to explore deep into the earth's surface, uncovering valuable resources and expanding your drilling capabilities.GL350S
>>Borehole diameter can up to 105-325mm.
>>The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, convenient operation.
GL400S
>>Crawler type down the hole Water well drilling rig 400m well water drilling rig for sale
>>It adopts domestic famous 65kw diesele ngine.which features strong power and ability to meet the working require-ment of various operation environment. GL600S
>>It's automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
>>Moving speed is 2.5 KM/h, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
>>Compact structure,centralized handle, small footprint, light weight, strong decomposition, easy to move. Suitable for plain and mountain areas.
After Sales ServiceWarranty of Crawler Type Water Well Drilling Rig:
(1)Within the period of the first year after delivery, the main parts are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service,
but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.Related product
We can supply full set of drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.
Drilling equipment:Air compresoor and Mud pump.
Drilling rig:Water well drilling rig/HDD drilling rig/Core drilling rig/RC drilling rig/Rock drilling rig etc.
Company Profile
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements. Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Our Services
*Pre-sale service
Select suitable model & matched equipment.
Professional technical support. Reply clients' questions within 24 hours.
Matched accessories strictly before delivery.
*After Sales Service
Timely inform client of production progress.
E-mail, call or appoint a technician service in later using.
FAQ
Q:Are you a trading company or a manufacturer?
A:We are a professional manufacturer.
The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
Q:Can you supply related drilling tools?
A:Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit.
Q:How about quality assurance?
A:We provide a one-year quality guarantee for the main machine of the machine.

---
