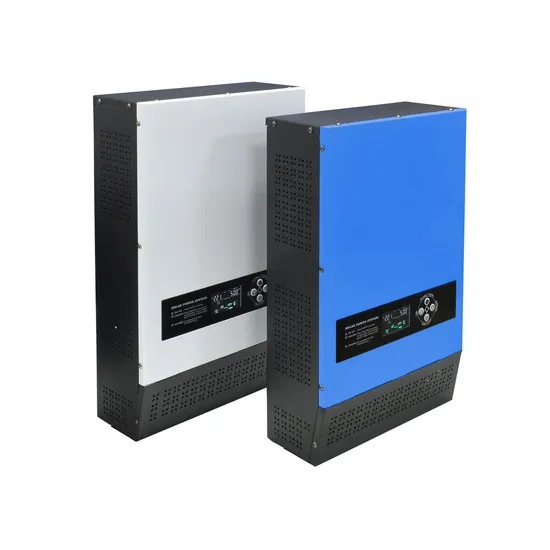

Product Description 12V 220V 5000W Hybrid Inverter 1000W 1500W 2000W 3000W 4000W 6000W Solar Inversor 24V 48V 110V 120V Pure Sine Wave Inverter
| rated power | 1kw | 2kw | 3kw | 4kw | 5kw | 6kw |
| barrery voltage | 12/24VDC | 12/24/48VDC | 12/24/48VDC | 24/48VDC | 48VDC | 48VDC |
| machine size(L*W*Hmm) | 490*300*130 | 510*320*130 |
| packing size(L*W*Hmm) | 565*395*225 | 585*415*225 |
| N.W(kg) | 12 | 14.5 | 16.5 | 19 | 22 | 25 |
| G.W(kg) | 13.5 | 16 | 18.5 | 21 | 24 | 27 |
| Parameter |
| DC input voltage range | 10.5~15VDC(single battery voltage) |
| AC input voltage range | 73VAC~138VAC/93VAC~150VAC/145VAC~275VAC/158VAC~300VAC |
| AC input frequency range | 45Hz~65Hz |
| efficiency(battery mode) | ≥85% |
| out voltage(battery mode) | (110VAC~240VAC)±2% |
| out frequency(battery mode) | 56/60Hz±1% |
| output wave(battery mode) | pure sine wave |
| AC output voltage range | (110VAC~240VAC)±10% |
| AC output frequency range | tracking automatically |
| workking mode | AC first, battery first, saving energy mode |
| AC charging current(selectable) | 0~30A |
| transfer time | ≤4ms |
| display | LCD |
| thermal method | cooling fan in temperature comtrol |
| ≥55ºC fan rotates |
| protection | over-load, over-discharge, short circuit, high temperature, reverse polarity |
| communication | Rs232, Rs484, SNMP, APP etc(optional) |
| temperature | -10ºC~40ºC |
| noise | ≤55db |
| humidity | <95% |
| Note | All sbecification are subject to change without prior notice |
1. Battery number and capacity should be configured according to the rated voltage of the solar power system or inverter; 2. We offer 3 optional working modes (transfer time≤4ms): 01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter. 02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter's rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage. 03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first.When battery capacity is not enough, the grid will continue to supply power automa Product Packaging
