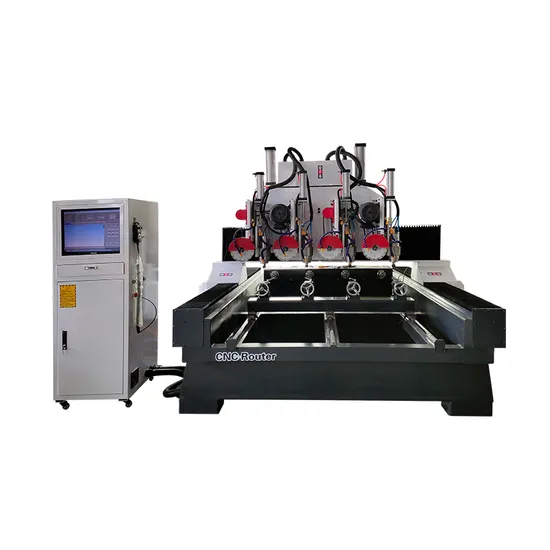

4 Axis CNC Carving Machine for 3D Marble Granite Carving Cutting Milling Engraving

Product Description

4 Axis cnc carving machine for 3d marble granite carving cutting milling engraving
This item is very suitable for columns bulk production such as stair railing,stair handrail,3d sculptures,360 degree human body,buddhist statue,furniture legs..., multi spindles can work at the same time,also can work alone. All machine parts adopt top quality from all over the world, such as Japan YASKAWA Servo Motor and driver, Taiwan HIWIN square linear guide rail, Taiwan TBI ball screw…,to make sure machine with high performance and durability. well compatibility in software: all kind of 3D carving. we can make Multi heads machine with any working size according to customers' requirements. Four rotary device can process different kinds of 3d roman columns corbel pilasters cylinders pillars. The working size can be customized according to customers' specific requirements. There are 3 axis/5 axis same machines for choosing.

Model No.	JCS1325R-4H
Lathe bed	heavy duty steel structure
Working size	200mm diameter, 1300mm length for each rotary * 4 pieces
Spindle power	3KW water cooled spindle * 4 pieces
Spindle rotating	0-24000rpm
Max.travelling speed	20m/min
Max.working speed	15m/min
Control system	4 axis Ncstudio card
Motor	Japan YASKAWA Servo motor and driver
Inverter	Taiwan Delta
Oil system	Automatic
Saw Blade Unite	saw blade unit *4pcs for fast roughing

Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, glass, plexiglass, wood, pvc, eps foam, aluminum composite panel, aluminum block, copper and so on.


1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery oversea

---
