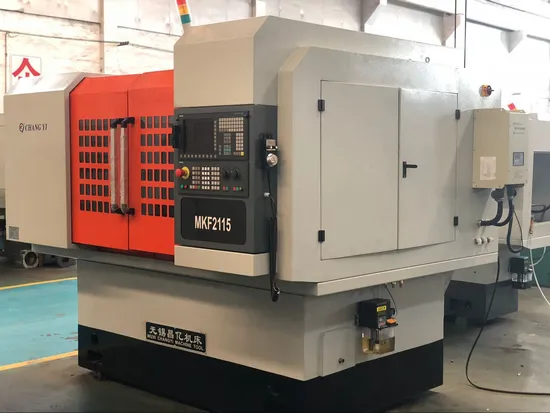

Gear Machining Multifunction Grinding Machine Tool Mkf2115

US$145,000.00
1 Piece
US$144,000.00
2+ Pieces

Basic Info.

Model NO.
MKF2115
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Multifunction Grinding Machine
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Roundness of Inner Bore
2um
Cylindricity of Inner Bore
3um
Surface Roughness of Inner Bore
Ra0.4um
External Roughness
Ra0.63um
External Cylindricity
2.5um
Flatness of End Face
0.6um
Rated Power
10-20kw
Weight of Machine Tool
4800kg
Transport Package
Waterproof Film Wrapped, Wooden Case Package
Specification
2400x1800x2500mm
Trademark
CHANGYI
Origin
Wuxi, China
HS Code
8460292
Production Capacity
20 Sets Per Year

Product Description


* Main characteristics of this machine tool
* This machine tool consists of three axises. Three axis motions adopt the rolling ball screw of the servo motor. Among them, X-axis is the feed system, and Z1 axis and Z2 axis are three axis linkage multifunction CNC grinding machine of the reciprocating system.
* When clamping once, this machine tool can grind the workpiece excircle, inner circle,inner taper hole, inner end face of stepped hole and outer end face. Grinding cycle is done automatically.
