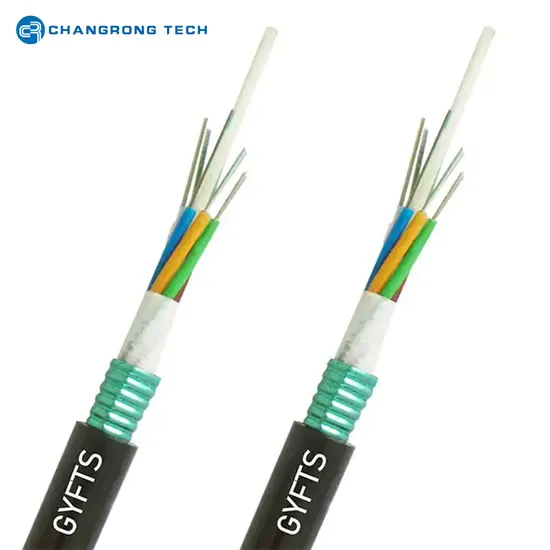

Changrong Tech 2-288 Core Optical Fibre Outdoor Fiber Optic Cable Gyfts Steel Armored Cable

Product Description

Outdoor Duct/Direct Buried Steel Armored Fiber Optic Cable
The fibers are positioned in a loose tube made of PBT and filled with gel. Tubes (and fillers) are stranded around the metallic strength member to form the cable core. The steel tape (CST) is longitudinally armored over the cable core, which is filled with water blocking compound. Finally a PE jacket is extruded.
Changrong Tech manufactures various types of outdoor armored fiber optic cables for long-distance fast data transmission, durable with anti-rodent function.
Application:
Duct / Direct Buried Underground Installation
Options:(2-288 core)
Single Jacket Single Armor: GYTS, GYFTS, GYTA, GYFTA
Double Jacket Double Armor:GYTA53, GYTS53
Double Jacket Single Armor: GYTY53, GYFTY53
Drum Length: 2km, 3km, 4km,etc.Features:
• Good mechanical and thermal performance
• Steel wire as the central strength member
• Hydrolysis resistant loose tube
• Tube filling compound ensures critical protection of fiber
• Specially designed stranded structure eliminating contraction of tubes
• Rugged, durable PE jacket protects against UV radiation, fungus etc.
• Crush resistance and flexibility
• Water-blocking measures :
- Loose tube gel-filled
- 100% cable filling compound
- Corrugated steel tape(CST) enhancing moisture-proofProduct Parameters

Fiber Count	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Filler)	5	6	5	6	8	10	12	18	24
Cable Diameter(mm)	9.2	9.6	9.7	10.2	11.5	12.8	14.0	14.3	16.2
Weight(Kg/km)	87	102	98	118	143	170	197	204	255
Fiber Type	G652D G655 G657 50/125 62.5/125
Tensile Strength(N)	Long/Short Term:600/1500
Crush Resistance(N/100mm)	Long/Short Term:300/1000
Bending Radius(mm)	Static/Dynamic:10D/20D
Temperature(ºC)	Storage /Operation:-40ºC~70ºC

Cable Structure Design GYTS/ GYFTS Cable: Single Jacket armored with steel tape
GYTA/ GYFTA Cable: Single Jacket armored with Aluminum tape
GYTA53/ GYTS53/ GYTY53 Cable: Double Jacket armored with steel tape
CertificationsISO9001, ISO14001, ISO45001 Certified FactoryOwn laboratory has passed the CNAS Certification
Products are certified by TLC.
Our Advantages1. Totally 18 Optical Cable Production Lines, able to manufacture bulk orders with prompt delivery.
2. Reliable Technical Support, meet the needs of different structure design and technical requirements.
3. Totally 18 Optical Fiber Production Lines, with annual output 15 millions core kilometers, able to manufacture A-grade Single Mode Fibers with high speed.
4. Own laboratory with advanced testing equipment introduced from France, Japan and USA, strictly controls products' quality under ISO9001 management system, industrial and international standards IEC60794-1.
5. Supply OEM/ ODM service.
Anhui Changrong Optical Fiber & Cable Technology Co.,Ltd is one of the leading global manufacturers of optic fiber and cable, and provides integrated and appropriately priced solutions for telecommunication applications around the world.
Equipped with the most advanced fiber drawing towers, high-speed screening machines introduced from France, and other optical and mechanical testing facilities, Changrong is capable of producing 15 million core kilometers of fibers and cables with superior performance.
With highly advanced R&D and cutting-edge technology within the industry, Changrong fiber optic cables have been widely applied in China Mobile, China Unicom, China Telecom etc. In China, and exported to North America, South America, Africa and Southeast Asia market.
Main product type:
Optical Fiber: G652D G657A1 G657A2
Air Blown Micro Cable: GYCFTY
All Dielectric Cable: ADSS ASU GYFTY
Duct Installation Cable: GYTA GYFTA GYTS GYFTS
Aerial Installation Cable: GYTC8Y GYTC8S GYXTC8S GYXTC8Y GYFTC8Y GYFTC8S
Direct Burial Installation Cable: GYTY53 GYTA53 GYFTA53
Central Uni-tube Cable: GYXTW GYFXTY GYFFTY
Drop Cable: GJXH GJXFH GJYXCH GJYXFCH
Yearly productive capacity
Optical Fiber: 15 million fkm
Outdoor cable : 35000KM cable length
Drop Cable: 99600KM cable length
As a world-class expertise in optical fibers and cables, Changrong is determined to make a commitment to quality, performance and customer services. Let′s cooperate and evolve to change the way the world communicates.
Packaging & Shipping
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer in Chuzhou Anhui Porvince, China.
2.What is your fiber brand ?
We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, ISO14001
6.What is your delivery time?
Usually within 7-10 working days
7.What about your annual production capacity?
Outdoor Fiber Optic Cable : annual output is 35000 KM;
FTTH/FTTX/FTTA Cable: annual output is 1200000 KM per year;
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

---
